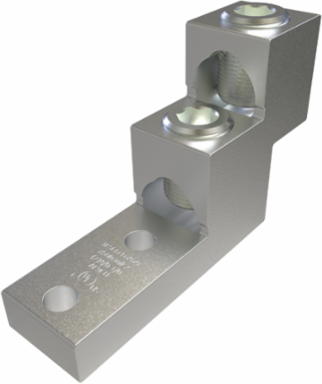

ILSCO PBMW-2-750-38 Aluminum Panelboard Lug, Dual Rated, 750-2 kcmil, 2 Ports, 3/8 Inch Bolt Size, Tin Plated
- MPN: PBMW-2-750-38
- UPC: 783669184334
- PPN: ILC-PBMW-2-750-38
CAD
$252.93
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Aluminum Panelboard Lug, Dual Rated, 750-2 kcmil, 2 Ports, 3/8 Inch Bolt Size, Tin Plated
Documentation & Downloads
Specifications
Key Specifications
- Height
- 2.96 in | 75.184 mm
- Weight
- 1.588 lbs
Length4.91 in | 124.714 mm
Width1.31 in | 33.274 mm
Voltage
- Voltage Rating
- 35 kV
Dimensions
- Dimension G (IN)
- 0.38
- Drive Size Main
- 1/2
- Height BX (IN)
- 2
- Length (mm)
- 124.714
- Mounting Hole Diameter (IN)
- 0.406
- Mounting Hole Spacing (IN)
- 1.38
- Tang Length (IN)
- 2.35
- Tang Thickness (IN)
- 0.625
- Tang Width (IN)
- 1.31
- Weight BX (LB)
- 3.3234
- Width (mm)
- 33.274
Dimension G (mm)9.652
Drive Type MainInternal Hex
Height (mm)75.184
Mounting Bolt/Stud Size (mm)965.2
Mounting Hole Diameter (mm)10.3124
Mounting Hole Spacing (mm)35.052
Tang Length (mm)59.69
Tang Thickness (mm)15.875
Tang Width (mm)33.274
Width BX (IN)6.188
Testing Standards
- Prop65 Compliance
- This product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation
- UL File Number
- E6207
UL / CULUS SpecificationUL/cUL 486A/B Listed
Additional Class Attributes
- Connection
- Mechanical
- Mounting Hole Type
- Thru
- Number of Mounting Holes
- 2
- Number of Ports / Wireways
- 2
Contains DE-OX®No
Number of Conductors4, 2
Number of Poles1
Wire OrientationPerpendicular
Material and Finish
- Conductor Material
- Aluminum, Copper
- Material
- Aluminum
- Wire Binding Hardware Material
- Aluminum
Connector FinishTin
Wire Binding Hardware FinishTin
Conductor Ranges
- Conductor Range AL Stranded (Primary, run, main, line)
- 750 kcmil - 2 Str
- Wire Combinations
- (2) 4/0 Str - 1/0 Str
Conductor Range CU Stranded (Primary, run, main, line)750 kcmil - 2 Str
Additional Technical Specifications
- Conductor Type
- Stranded
General
- Bag Quantity
- 1
- Direct Burial
- No
- NEMA Code
- S-588-3
Carton Quantity DescriptionSTD PACK QTY 10
Dual RatedYes
UPC Code78366918433
Bolt and Screw Sizes
- Mounting Bolt/Stud Size
- 3/8
- Wire Binding Screw Size
- 15/16
Number of Wire Binding Screws per Port1
Wire Binding Torque500
Color
- Color
- Silver
Environment and Temperature
- Temperature Rating
- 90°C
