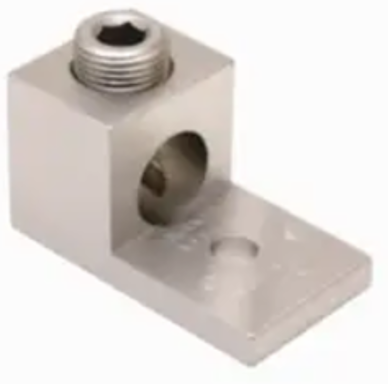

Burndy KA29U Aluminum Universal Terminal, 1 Hole, 6 AWG-250 kcmil, 5/16 Inch Stud, Tin Plated
- MPN: KA29U
- UPC: 781810370155
- PPN: BUR-392015
- UNSPSC: 39121408
CAD
$13.03
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Aluminum Universal Terminal, 1 Hole, 6 AWG (Str)-250 kcmil, 5/16" Stud, 1 Screw, Al/Cu Rated, Tin Plated.
Features
- Dual Rated Panelboard Lugs
- High strength extruded aluminum alloy
- Electro tin-plated for low contact resistance
- Rated to 35kV
Documentation & Downloads
Specifications
Additional
- Temperature Rating
- 194 F
- UL Listed
- Yes
- Conductor Size
- 6 AWG - 250 KCMIL
- Stud Size
- 5/16 in.
- Hole Size
- 0.33 in.
- Length Overall
- 2.00 in.
- Pad Width
- 1.02 in.
- Number of Screws
- 1
- Material
- Aluminum
- Country of Origin
- MX
Industry StandardsUL 486A-486B
RoHS CompliantYes
Installation Torque275 lbs/in
Bolt Hole Size0.31 in.
Height1.14 in.
Width1.00 in.
Number of Holes1
Screw TypeAllen
PlatingTin
