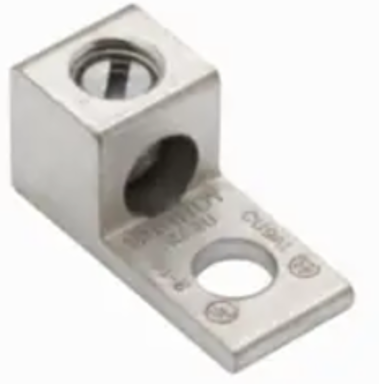

Burndy KA2U Aluminum Universal Terminal 1 Hole 14-2 AWG 1/4 Inch Stud Tin Plated
- MPN: KA2U
- UPC: 781810370056
- PPN: BUR-392005
- UNSPSC: 39121408
CAD
$3.85
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Aluminum Universal Terminal, 1 Hole, 14-2 AWG (Str), 1/4" Stud, 1 Screw, Al/Cu Rated, Tin Plated.
Features
- Dual Rated Panelboard Lugs
- High strength extruded aluminum alloy
- Electro tin-plated for low contact resistance
- Rated to 35kV
Documentation & Downloads
Specifications
Additional
| Voltage Rating | 600 V |
|---|---|
| Temperature Rating | 194 F |
| Stud Size | 1/4 in |
| Dimensions - Width | 0.50 in |
| Dimensions - Bolt Hole Size | 0.25 in |
| Plating Type | Tin |
| Conductor Type | Aluminum Stranded, Copper Stranded |
| Screw Type | Slot |
| Certification | UL Listed, CSA Approved |
| Country of Origin | MX |
| Installation Torque | 50 in-lb |
|---|---|
| Number of Conductors | 1 |
| Dimensions - Length Overall | 1.16 in |
| Dimensions - Height | 0.56 in |
| Material | Aluminum, Steel |
| Conductor Size | 14-2 AWG |
| Connector Type | Terminal |
| Standards | UL 486A-486B |
| RoHS Compliance | Yes |
