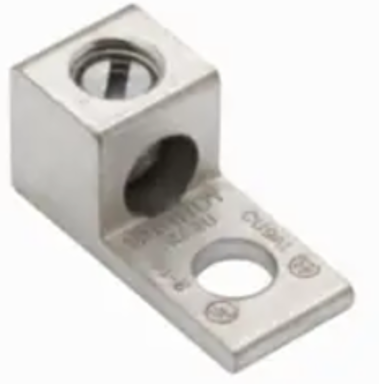

Burndy KA6U Aluminum Universal Terminal 1 Hole 14-6 AWG 1/4 Inch Stud Tin Plated
- MPN: KA6U
- UPC: 781810370179
- PPN: BUR-392018
- UNSPSC: 39121408
CAD
$3.58
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Aluminum Universal Terminal, 1 Hole, 14-6 AWG (Str), 1/4" Stud, 1 Screw, Al/Cu Rated, Tin Plated.
Features
- Dual Rated Panelboard Lugs
- High strength extruded aluminum alloy
- Electro tin-plated for low contact resistance
- Rated to 35kV
Documentation & Downloads
Specifications
Additional
| Voltage Rating | 600 V |
|---|---|
| Conductor Size | 14-6 AWG Copper Stranded; 8-6 AWG Aluminum Stranded |
| Length Overall | 1.06 in |
| Height | 0.51 in |
| Stud Size | 1/4 in |
| Number of Screws | 1 |
| Material | Aluminum, Steel |
| Certification Agency | Prop 65; UL Listed; CSA Approved |
| RoHS Compliance | Exempt |
| Number of Conductors | 1 |
|---|---|
| Installation Torque | 35 in-lb |
| Width | 0.50 in |
| Bolt Hole Size | 0.25 in |
| Number of Holes | 1 |
| Screw Type | Slot |
| Plating Type | Tin |
| Standards | UL 486A-486B |
| Country of Origin | Mexico |
