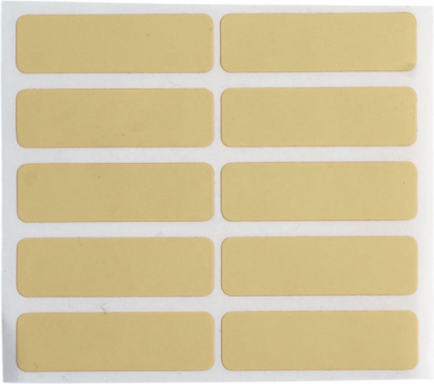

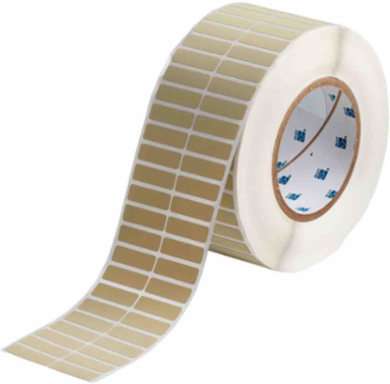

Brady THT-29-724-10 Amber Polyimide Labels, 0.375 Inch H x 1.25 Inch W, Roll of 10000, Heat Resistant
- MPN: THT-29-724-10
- UPC: 754473933869
- PPN: BRD-THT-29-724-10
- UNSPSC: 55121612
CAD
$2039.00
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Amber high temperature polyimide with an ultra-durable adhesive withstands the extreme wash protocol and cleaning chemicals used in printed circuit board manufacturing.
Features
- Withstands multiple cycles of harsh condition washes for printed circuit boards and electronic component preprocess labeling
- Resists high temperatures up to 572° F (300° C)
- Fulfills requirements for MIL-STD-202G Method 215K and SAE AS81531 Marking of Electrical Insulating Material when used with R4300 series ribbons

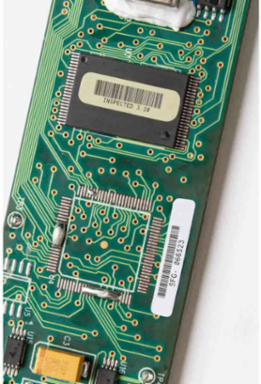

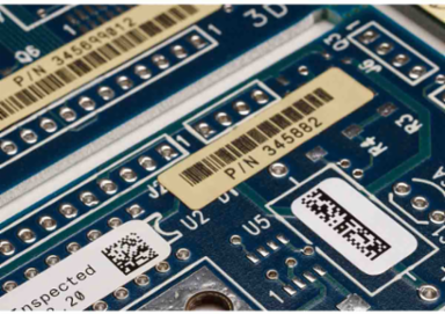

- Survives on the top or bottom side of printed circuit boards through the solder process
Documentation & Downloads
Specifications
Key Specifications
- Applications
- Circuit Board Labeling
- Brand Name
- Brady®
- Color
- Amber
- Finish
- Matte
- Industry
- Aerospace; Automotive; Electronics; Manufacturing
- Primary Noun, Basic Function
- Label
- Printer and Label Applications
- Circuit Board
- Printer Compatibility (Print)
- BBP12; i7100; i5100
- Quantity per Row
- 2
- Ribbon Series
- R4300; R7950
- Suggested Ribbon Series
- R4300
- Total Quantity
- 10000
- Adhesive (Y/N)
- Yes
- After Process
- Yes, this material will work with this application
- Label Properties
- Heat Resistant Labels; Permanent Adhesive Labels
- SAP B-Number
- B-724
- Dimensions
- 0.375 in H x 1.25 in W
- Dimensions 2
- 0.375 in H x 1.25 in W
- Height (mm/cm/m)
- 9.53 mm
- Label/Tape Size (in/ft/yd)
- 0.375 in H x 1.25 in W
- Maximum Service Temperature °F
- 572 °F
- Minimum Service Temperature °F
- -94 °F
- Size - Width (mm)
- 31.75 mm
- Thickness (mm/cm/m)
- 0.112 mm
- Vertical Repeat (mm)
- 12.07 mm
- Width (in/ft/yd)
- 1.25 in
Board ApplicationSMT - Top/Bottom; Through Hole - Bottom; Through Hole - Top
Bulk PartNot a Bulk Part
Compatible Surface TypesHigh Surface Energy
For Use with PrinterBBP®81 Label Printer; BRADY IP® Series Label Printer; BradyPrinter i5100; BradyPrinter i7100; BRADYPRINTER PR Plus Series Label Printer; THT 3" Core Printer
Label/Media FormatRoll
Print TechnologyThermal Transfer
Printer CompatibilityBBP12; BBP11; BP1244; BP1344; BP2461; BP3481; BP6441; MVP200; MVP300; 300XPlusII; 360XPlusII; 600XPlusII; PR200Plus; PR300Plus; PR600Plus; IP300; IP600; i7100; i5100
Quantity per Roll10000
Recommended RibbonIP-R4300; R4300
ShapeRectangle
Total Qty per Pack10000 Label(s) / Roll
Trade NameUltraTemp®
Adhesive TypePermanent Acrylic
Brady Material NumberB-724
MaterialPolyimide
Core Diameter (mm/cm/m)76.20 mm
Dimensions (Metric)31.75 mm W x 9.53 mm H
Height (in/ft/yd)0.375 in
Horizontal Repeat (mm)33.02 mm
Maximum Service Temperature °C300 °C
Minimum Service Temperature °C-70 °C
Sign Size-General0.375 in x 1.25 in
Thickness (in/ft/yd)0.0044 in
Vertical Repeat0.475 in
Web Width (mm/cm/m)69.85 mm
Width (mm/cm/m)31.75 mm
Regulatory Information
- Contains CA PROP 65 Substance
- Yes Contains-Label not req.
- Contains Heavy Metal(s)
- No - Does not contain
- EU RoHS Compliance
- Pass 2011/65/EU(Pass 2015/863)
- SDS Safety Data Sheet required
- No = MSDS/SDS is not required
Contains CA PROP 65 SubstanceNo
DOT Regulated ProductNo = not regulated by DOT
EU RoHS CompliantYes
