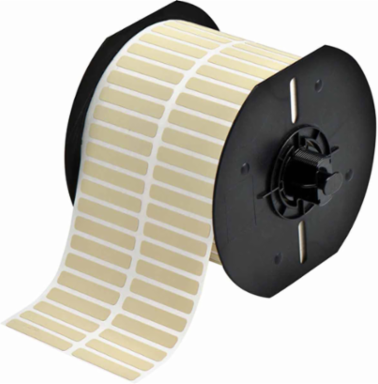

Brady B33-4-724 UltraTemp Amber Polyimide Labels 0.25 Inch H x 1.5 Inch W, Heat Resistant, 5000 Labels/Box
- MPN: B33-4-724
- UPC: 754473938932
- PPN: BRD-B33-4-724
- UNSPSC: 55121612
CAD
$1019.00
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Amber high temperature polyimide with an ultra-durable adhesive withstands the extreme wash protocol and cleaning chemicals used in printed circuit board manufacturing.
Features
- Withstands multiple cycles of harsh condition washes for printed circuit boards and electronic component preprocess labeling
- Resists high temperatures up to 572° F (300° C)
- Fulfills requirements for MIL-STD-202G Method 215K and SAE AS81531 Marking of Electrical Insulating Material when used with R4300 series ribbons
- Survives on the top or bottom side of printed circuit boards through the solder process
Documentation & Downloads
Specifications
Key Specifications
- Applications
- Circuit Board Labeling
- Brand Name
- Brady®
- Color
- Amber
- Corner Type
- Rounded Corners
- Enables Industry Compliance
- ASTM B 117; ASTM D 1000; ASTM D 2979; ASTM G 155; MIL-STD-202G
- For Use with Printer
- BBP®33 Label Printer; BradyPrinter i3300
- Label/Media Format
- Roll
- Primary Noun, Basic Function
- Label
- Printer and Label Applications
- Circuit Board
- Printer Compatibility (Print)
- i3300
- Quantity per Row
- 2
- Ribbon Series
- B30-R4300
- Software Compatibility
- Labelmark™ Software
- Total Qty per Pack
- 5000 Label(s) / Box
- Trade Name
- UltraTemp®
- Adhesive Type
- Permanent Acrylic
- Brady Material Number
- B-724
- Material
- Polyimide
- SAP B-Number
- B-724
- Dimensions (Metric)
- 38.10 mm W x 6.35 mm H
- Height (in/ft/yd)
- 0.25 in
- Horizontal Repeat (mm)
- 41.91 mm
- Maximum Service Temperature °C
- 300 °C
- Minimum Service Temperature °C
- -70 °C
- Printable Area Dimensions (Metric)
- 6.4 mm H x 38.1 mm W
- Printable Area Width (mm/cm/m)
- 38.1 mm
- Size - Width (mm)
- 38.10 mm
- Thickness (mm/cm/m)
- 0.112 mm
- Vertical Repeat (mm)
- 8.90 mm
- Width (mm/cm/m)
- 38.1 mm
Board ApplicationSMT - Top/Bottom; Through Hole - Bottom; Through Hole - Top
Bulk PartNot a Bulk Part
Compatible Surface TypesHigh Surface Energy
DiagramIcon 26 (hexagon)
FinishMatte
IndustryElectronics
Manufacturer Part NumberB33-4-724
Print TechnologyThermal Transfer
Printer Compatibilityi3300; BBP33
Quantity per Roll5000
Recommended RibbonB30-R4300
ShapeRectangle
Suggested Ribbon SeriesR4300
Total Quantity5000
Adhesive (Y/N)Yes
After ProcessYes, this material will work with this application
Label PropertiesHeat Resistant Labels; Permanent Adhesive Labels
Resistance PropertiesAbrasion-Resistant; Chemical-Resistant; Corrosion-Resistant; Humidity-Resistant; Wave Solder-Resistant
Dimensions0.25 in H x 1.5 in W
Dimensions 20.25 in H x 1.5 in W
Height (mm/cm/m)6.35 mm
Label/Tape Size (in/ft/yd)0.25 in H x 1.5 in W
Maximum Service Temperature °F572 °F
Minimum Service Temperature °F-94 °F
Printable Area Height (mm/cm/m)6.4 mm
Sign Size-General0.25 in x 1.5 in
Thickness (in/ft/yd)0.0044 in
Vertical Repeat0.35 in
Width (in/ft/yd)1.5 in
Regulatory Information
- Contains CA PROP 65 Substance
- Yes Contains-Label not req.
- Contains Heavy Metal(s)
- No - Does not contain
- EU RoHS Compliance
- Pass 2011/65/EU(Pass 2015/863)
- SDS Safety Data Sheet required
- No = MSDS/SDS is not required
Contains CA PROP 65 SubstanceNo
DOT Regulated ProductNo = not regulated by DOT
EU RoHS CompliantYes
