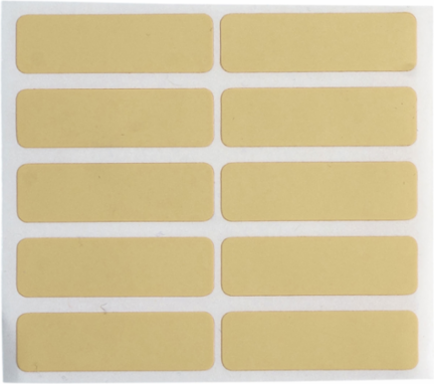

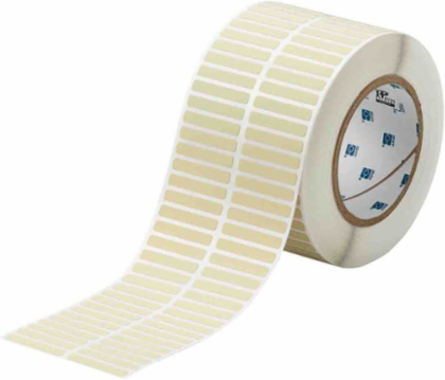

Brady THT-4-724-10 Amber Polyimide Labels, 0.25 Inch H x 1.5 Inch W, Roll of 10000, Heat Resistant
- MPN: THT-4-724-10
- UPC: 754473846091
- PPN: BRD-THT-4-724-10
- UNSPSC: 55121612
CAD
$2129.00
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Amber high temperature polyimide with an ultra-durable adhesive withstands the extreme wash protocol and cleaning chemicals used in printed circuit board manufacturing.
Features
- Withstands multiple cycles of harsh condition washes for printed circuit boards and electronic component preprocess labeling
- Resists high temperatures up to 572° F (300° C)
- Fulfills requirements for MIL-STD-202G Method 215K and SAE AS81531 Marking of Electrical Insulating Material when used with R4300 series ribbons

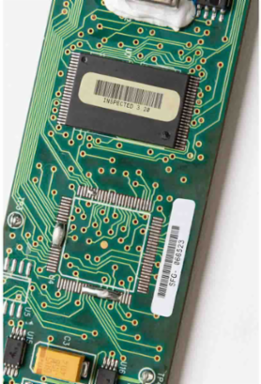

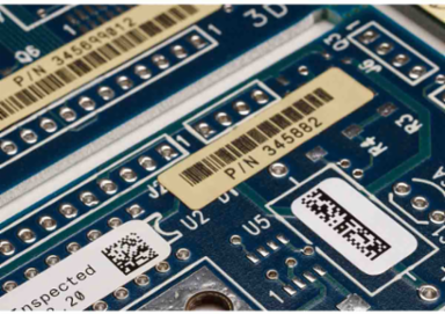

- Survives on the top or bottom side of printed circuit boards through the solder process
Documentation & Downloads
Specifications
Key Specifications
- Applications
- Circuit Board Labeling; Component and Equipment Labeling
- Brand Name
- Brady®
- Color
- Amber
- Diagram
- Icon 26 (hexagon)
- Finish
- Matte
- Industry
- Aerospace; Automotive; Electronics; Manufacturing
- National Stock Number (NSN)
- 9905014767459
- Print Technology
- Thermal Transfer
- Printer Compatibility
- BBP12; BBP11; BP1244; BP1344; BP2461; BP3481; BP6441; MVP200; MVP300; 300XPlusII; 360XPlusII; 600XPlusII; PR200Plus; PR300Plus; PR600Plus; IP300; IP600; i7100; i5100
- Quantity per Roll
- 10000
- Recommended Ribbon
- IP-R4300; R4300
- Shape
- Rectangle
- Total Qty per Pack
- 10000 Label(s) / Roll
- Trade Name
- UltraTemp®
- Adhesive Type
- Permanent Acrylic
- Brady Material Number
- B-724
- Material
- Polyimide
- SAP B-Number
- B-724
- Dimensions
- 0.25 in H x 1.5 in W
- Dimensions 2
- 0.25 in H x 1.5 in W
- Height (mm/cm/m)
- 6.35 mm
- Label/Tape Size (in/ft/yd)
- 0.25 in H x 1.5 in W
- Maximum Service Temperature °F
- 572 °F
- Minimum Service Temperature °F
- -94 °F
- Printable Area Height (mm/cm/m)
- 6.35 mm
- Sign Size-General
- 0.25 in x 1.5 in
- Thickness (in/ft/yd)
- 0.0044 in
- Vertical Repeat
- 0.35 in
- Web Width (mm/cm/m)
- 85.09 mm
- Width (mm/cm/m)
- 38.1 mm
Board ApplicationSMT - Top/Bottom; Through Hole - Bottom; Through Hole - Top
Bulk PartNot a Bulk Part
Compatible Surface TypesHigh Surface Energy
Enables Industry ComplianceASTM B 117; ASTM D 1000; ASTM D 2979; ASTM G 155; MIL-STD-202G; SAE-AS-81531
For Use with PrinterBBP®81 Label Printer; BRADY IP® Series Label Printer; BradyPrinter i5100; BradyPrinter i7100; BRADYPRINTER PR Plus Series Label Printer; THT 3" Core Printer
Label/Media FormatRoll
Primary Noun, Basic FunctionLabel
Printer and Label ApplicationsCircuit Board
Printer Compatibility (Print)BBP12; i7100; i5100
Quantity per Row2
Ribbon SeriesR4300; R7950
Suggested Ribbon SeriesR4300
Total Quantity10000
Adhesive (Y/N)Yes
After ProcessYes, this material will work with this application
Label PropertiesHeat Resistant Labels; Permanent Adhesive Labels
Resistance PropertiesAbrasion-Resistant; Chemical-Resistant; Corrosion-Resistant; Humidity-Resistant; Weather-Resistant
Core Diameter (mm/cm/m)76.20 mm
Dimensions (Metric)38.10 mm W x 6.35 mm H
Height (in/ft/yd)0.25 in
Horizontal Repeat (mm)41.91 mm
Maximum Service Temperature °C300 °C
Minimum Service Temperature °C-70 °C
Printable Area Dimensions (Metric)6.35 mm H x 38.1 mm W
Printable Area Width (mm/cm/m)38.1 mm
Size - Width (mm)38.10 mm
Thickness (mm/cm/m)0.112 mm
Vertical Repeat (mm)8.89 mm
Width (in/ft/yd)1.5 in
Regulatory Information
- Contains CA PROP 65 Substance
- Yes Contains-Label not req.
- Contains Heavy Metal(s)
- No - Does not contain
- EU RoHS Compliance
- Pass 2011/65/EU(Pass 2015/863)
- SDS Safety Data Sheet required
- No = MSDS/SDS is not required
Contains CA PROP 65 SubstanceNo
DOT Regulated ProductNo = not regulated by DOT
EU RoHS CompliantYes
