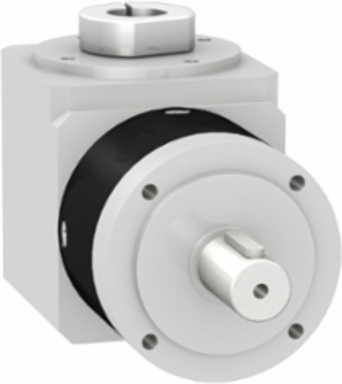

Schneider Electric GBY120012K Angular Planetary Gearbox, 120 mm, Reduction 12:1, 260 N.m Torque
- MPN: GBY120012K
- PPN: SCH-GBY120012K
CAD
$2484.32
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
Engineered for precision and reliability, the Angular Planetary Gearbox by Schneider Electric is a key component in motion control applications. With a compact design measuring 120 mm and a reduction ratio of 12:1, it provides enhanced torque handling capabilities, delivering up to 260 N.m of torque. This gearbox is ideal for automation and control systems, allowing for smooth and efficient performance in sophisticated servo motor setups. Its robust construction ensures durability and longevity, making it a vital asset for any advanced engineering project.
Documentation & Downloads
Specifications
Additional
- Maximum Output Torque
- 416 N.m 100 rpm 30 °C
- Maximum Radial Force
- 1500 N 100 rpm, force applied at mid-distance from output shaft during 30000 hour at 30 °C
- Reduction Ratio
- 12:1
- Torsional Rigidity
- 13 N.m/arcmin
- Noise Level
- 75 dB 1 m, no-load
- Input Diameter
- 24.0 mm
- Shaft Material
- C 45
- Gearbox Type
- Angular planetary gearbox
- Housing Colour
- Black
- Service Life
- 30000 h 100 rpm 30 °C
- Ambient Temperature Range
- -25 to 90 °C (-13 to 194 °F)
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Pvc Free
- Yes
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information
- Sustainable Offer Status
- Green Premium product
- Product Compatibility
- BMI 100 mm, 3; BMH 100 mm, 3; BSH 100 mm, 3; BMH 140 mm, 1; BSH 140 mm, 1; SH3; MH3; ILM
- Device Short Name
- GBY
- Circularity Profile
- N/A
Continuous Output Torque260 N.m 100 rpm 30 °C
Maximum Axial Force2100 N 100 rpm, during 30000 hour at 30 °C
Maximum Torsional Backlash13 arc.min
Efficiency92 %
Gearbox External Diameter120 mm
Shaft Moment Of Inertia5.6 kg.cm²
Gear Box Teeth TypeStraight teeth
Housing MaterialBlack anodized aluminium
LubricationLubricated for life
Mounting PositionAny position
IP Degree of ProtectionShaft output IP54
Reach RegulationReference contains Substances of Very High Concern above the threshold
Mercury FreeYes
Rohs Exemption InformationYes
Range CompatibilityLexium 32i, Lexium 32, Lexium 62 ILM, Lexium 52, Lexium 62
Warranty18 months
Environmental DisclosureENVPEP111245EN
