Schneider Electric

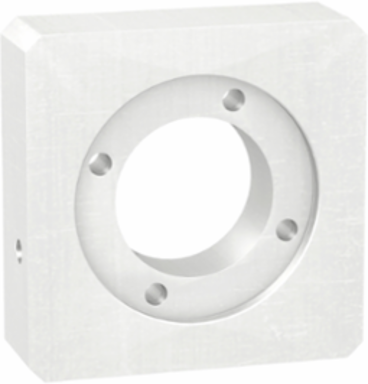

Schneider Electric GBK1201003F adaptation kit, Lexium, GBK, size 120, 21mm, for assembly motor and gearbox

adaptation kit, Lexium, GBK, size 120, 21mm, for assembly motor and gearbox
  • MPN: GBK1201003F
  • PPN: SCH-GBK1201003F

Spec sheet

Loading compare button...

  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below
    • Available to Order

    Company Stock:

    0

    Lead times may vary. For an accurate estimate please contact us.

    Loading dialog...

    Looking to buy a large quantity?

    To view product inventory

    CAD$242.72/ EA

    Description

    This product is part of the Lexium 32 range, an offer of motion servo drives for machines from 0.15kW to 7kW. This adaptation kit is used for assembly motor and gearbox. It is an adaptation kit with a motor flange size of 100mm and gearbox external diameter of 120mm. It weighs 0.65kg. This product is compatible with Lexium 32i, Lexium 62, Lexium 62 ILM, Lexium 32, Lexium 52 servo drives and motors BMI, MH3, SH3, BMH, BSH and ILM. The kit includes an adaptor plate, screws and bolts for mounting and shaft end adaptor. Lexium 32 is a servo drive range with three or four servo drive models and two servo motor families plus an intelligent selection of options. Servo drives and servo motors from 0.15kW to 7kW for maximum performance.

    Specifications

    Complementary

    Number Of Motor Stacks
    2 || 3 || 1
    Net Weight
    0.65 kg
    Length21.8 mm
    Motor Flange Size100 mm

    Offer Sustainability

    China Rohs Regulation
    Product out of China RoHS scope. Substance declaration for your information
    Rohs Exemption Information
    Yes
    Environmental Disclosure
    ENVPEP111245EN
    Pvc Free
    Yes
    Reach Regulation
    Reference contains Substances of Very High Concern above the threshold
    Circularity ProfileN/A
    Mercury FreeYes
    Sustainable Offer StatusGreen Premium product
    Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)

    Specifications

    Gearbox External Diameter
    120 mm
    Range Compatibility
    Lexium 32i || Lexium 62 || Lexium 62 ILM || Lexium 32 || Lexium 52
    Product Compatibility
    BMI || MH3 || SH3 || BMH || BSH || ILM
    Kit Composition
    an adaptor plate || screws and bolts for mounting || a shaft end adaptor
    Accessory / Separate Part Categoryadaptation accessory
    Product Or Component Typeadaptation kit
    Device Short NameGBK
    Accessory / Separate Part Destinationfor assembly motor and gearbox

    Contractual warranty

    Warranty
    18 months
