Hubbell ATS-01096 ATS-01096 (former catalog number ATS-OP-245-47-1DART-36)
- MPN: ATS-01096
- UPC: 662620435916
- PPN: HBL-ATS-01096
CAD
$949.69
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

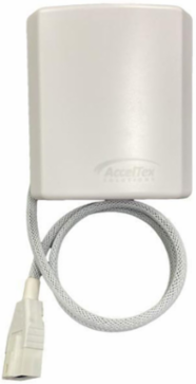

ATS-01096 (former catalog number ATS-OP-245-47-1DART-36). AccelTex Solutions Low Gain 4 Element Dual Band Wi-Fi Indoor/Outdoor Patch Antenna with DART connector is a perfect compliment to any enterprise-class AP to achieve directional coverage in your indoor or outdoor space.
Features
- Low gain, 4-element dual band patch antenna with DART connector
- Provides directional Wi-Fi coverage for indoor and outdoor applications
Specifications
Key Specifications
- Country of Origin
- China
- Cable Type
- RG58
- Dimensions
- 5.5 in x 4.7 in x 1.5 in
- Length
- 5.5 in
- Protection Type
- DC Grounded
- Width
- 4.7 in
- Application
- Indoor Wi-Fi, Outdoor Wi-Fi
- Frequency Rating
- 2.4-2.5/4.9-5.85 GHz
- Installation Type
- Threaded Bolt with Nut and Articulating Wall/Pole Mount
- Operating Temperature
- -40 to 65 °C
- Freight Class Code
- 15730000
- Image Actual Or Representative
- A
- Indoor/Outdoor
- Indoor or Outdoor
- Base Unit of Measure
- EA
- Carton - SCC-14 Next Lower Level Sub Pack
- 00662620435916
Antenna Gain4/7 dBi
Diameter - Pole2 in
Height1.5 in
Product TypePatch Antenna
Voltage Ratio< 2.0:1
Windage130 mph (210 km/h)
CompatibilityCisco Catalyst 9120AXE;Cisco Catalyst 9120AXP
Impedance50 Ohms
Isolation Loss˃20dB
Class CodeA62
Harmonization Code8517710000
Sub Class CodeA62A620
Technology802.11ac, 802.11ax, 802.11n
BOX SIZE(in)
