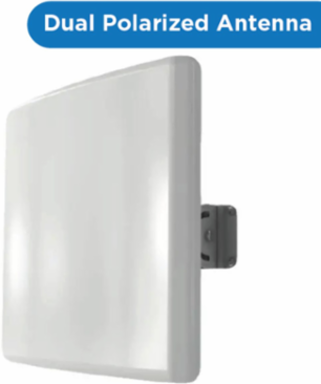

Hubbell ATS-01021 ATS-01021 (former catalog number ATS-OHDP-245-13-4NJ-IC)
- MPN: ATS-01021
- UPC: 662620435435
- PPN: HBL-ATS-01021
CAD
$1085.37
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
ATS-01021 (former catalog number ATS-OHDP-245-13-4NJ-IC). The AccelTex Solutions high density dual band indoor/outdoor patch antenna is a perfect complement to any enterprise-class AP to achieve focused, directional coverage in your indoor or outdoor space. With a narrower beamwidth than most patch antennas and both horizontal and vertical polarized antenna elements, this antenna is purpose-built to provide a very focused coverage pattern suitable for high density deployments. Each antenna element is optimized for Wi-Fi operation on both 2.4 and 5 GHz. This antenna comes with integrated connectors and ships with our articulating wall and pole mount kit for precise antenna positioning. This highly versatile antenna is suitable for a broad range of indoor and outdoor applications where focused RF coverage of an area is desired.
Features
- High-density dual band patch antenna with narrow beamwidth for focused coverage
- Features horizontal and vertical polarization with articulating wall/pole mount kit
Specifications
Key Specifications
| Country of Origin | China |
|---|---|
| Diameter - Pole | 2 in |
| Height | 1.8 in |
| Product Type | Patch Antenna |
| Voltage Ratio | < 2.0:1 |
| Windage | 130 mph (210 km/h) |
| Compatibility | Aruba/HP AP-584;Cisco 1562e;Cisco 1562ps;Cisco 1572eac;Cisco 1572ec;Cisco CW9163E;Cisco MR76;Cisco MR86 |
| Frequency Rating | 2.4/5 GHz |
| Installation Type | Articulating Wall/Pole Mount (included) |
| Operating Temperature | -40 to 65 °C |
| Freight Class Code | 15730000 |
| Image Actual Or Representative | A |
| Indoor/Outdoor | Indoor or Outdoor |
| Base Unit of Measure | EA |
| Carton - SCC-14 Next Lower Level Sub Pack | 00662620435435 |
| Antenna Gain | 13 dBi |
|---|---|
| Dimensions | 9.1 in x 9.1 in x 1.8 in |
| Length | 9.1 in |
| Protection Type | DC Grounded |
| Width | 9.1 in |
| Application | Indoor Wi-Fi, Outdoor Wi-Fi |
| Connector Type | N-Style Jack |
| Impedance | 50 Ohms |
| Isolation Loss | ˃20dB |
| Class Code | A62 |
| Harmonization Code | 8517710000 |
| Sub Class Code | A62A620 |
| Technology | 802.11ac, 802.11ax, 802.11n |
| BOX SIZE | (in) |
