Hubbell ATS-01054 ATS-01054 (former catalog number ATS-OO-245-46-6RPTP-36)

MPN: ATS-01054
UPC: 662620435688
PPN: HBL-ATS-01054

$1009.97

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

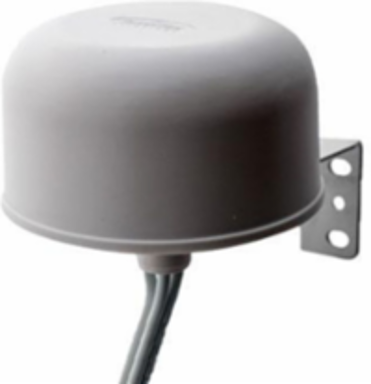

ATS-01054 (former catalog number ATS-OO-245-46-6RPTP-36). The AccelTex Solutions dual band indoor/outdoor omnidirectional antenna is a perfect complement to any enterprise-class AP to achieve desired coverage in your indoor or outdoor space. Each antenna element is optimized for Wi-Fi operation on both 2.4 and 5 GHz. This antenna comes with our integrated flush mount for surface mounting through a thin wall, ceiling or enclosure door and also ships with a wall and pole mount kit. This highly versatile antenna is suitable for a broad range of indoor and outdoor applications.

Features

Dual band omnidirectional antenna optimized for 2.4 and 5 GHz Wi-Fi
Includes flush mount and wall/pole mount kit for indoor or outdoor use

Specifications

Key Specifications

Country of Origin	China

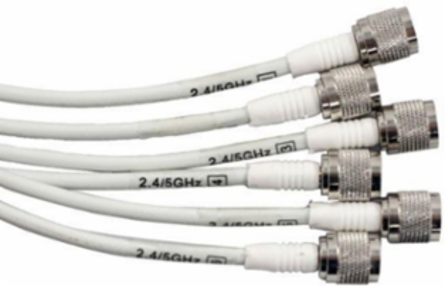

Cable Type	RG58
Length	6.1 in
Protection Type	DC Grounded
Width	2.8 in
Application	Carpeted Space, Indoor Wi-Fi, Outdoor Wi-Fi
Connector Type	RPTNC Plug
Impedance	50 Ohms
Isolation Loss	˃20dB
Class Code	A62
Harmonization Code	8517710000
Sub Class Code	A62A620
Technology	802.11ac, 802.11n
BOX SIZE	(in)

Antenna Gain	4/6 dBi
Diameter - Pole	2 in
Product Type	Omni Antenna
Voltage Ratio	< 2.0:1
Windage	130 mph (210 km/h)
Compatibility	Cisco MR46E
Frequency Rating	2.4-2.5/4.9-5.85 GHz
Installation Type	Threaded Bolt with Nut and Wall/Pole Mount (included)
Operating Temperature	-40 to 65 °C
Freight Class Code	15730000
Image Actual Or Representative	A
Indoor/Outdoor	Indoor or Outdoor
Base Unit of Measure	EA
Carton - SCC-14 Next Lower Level Sub Pack	00662620435688
