Weidmuller 8156200000 End Plate for RS 80 Housing - 3.402 Inch Length, 0.354 Inch Width, Pebble Grey

MPN: 8156200000
PPN: WDM-8156200000

CAD

$7.84

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Company Stock:

Qty:

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

End plate, RS 80 Pebble grey, End plate, Width: 9 mm

Documentation & Downloads

Specifications

System Characteristics

Version: End plate

Contact to terminal rail: No

Encapsulation option: No

Cross-connectionNo

Protection degreeIP20

Approvals

Approvals: GOSTME25

ROHSConform

Dimensions And Weights

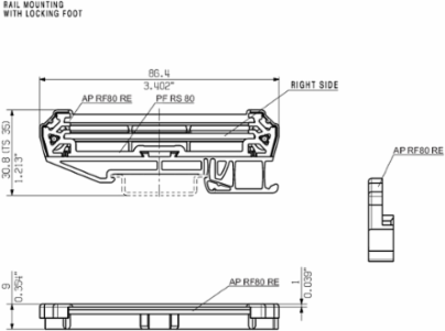

Length: 86.4 mm

Width: 9 mm

Height: 30 mm

Net weight: 6.05 g

Length (inches)3.402 inch

Width (inches)0.354 inch

Height (inches)1.181 inch

Material Data

Insulating material: PA 66

Colour chart (similar): RAL 7032

UL 94 flammability rating: V-2

Storage temperature, max.: 85 °C

Operating temperature, min.: -50 °C

Temperature range, installation, min.: -25 °C

ColourPebble grey

Comparative Tracking Index (CTI)≥ 600

Storage temperature, min.-25 °C

Max. relative humidity during storage80 %

Operating temperature, max.100 °C

Temperature range, installation, max.100 °C

Classifications

ETIM 6.0: EC001031

eClass 9.0: 27-18-27-90

eClass 10.0: 27-18-27-92

ETIM 7.0EC001031

eClass 9.127-18-27-90

UNSPSC30-21-18-27

Notes

Descriptive text technical data: 3 heights are available for the cover profile and the end plates:TS mounting without cover: TS 32 = 45 mm, TS35x7.5 = 40.5 mmTS mounting with low cover: TS 32 = 72 mm, TS 35x7.5 = 67.5 mmTS mounting with high cover: TS 32 = 91 mm, TS 35x7.5 = 86.5 mmDirect mounting, without/low/high cover: 17 / 44 / 63 mmDimensions of the PCB:Thickness: 1.6 (±0.2) mm, width: 67.8 (+0.2) mmDimension of the RS section = length of the printed circuit board – 4.5 mmDimension ADP section = PCB length - 2 mmExample:PCB length 160 mm, RS section = 155.5 mm, ADP section = 158 mm
