Weidmuller

Weidmuller 0271160000 AP SAK16

AP SAK16
  • MPN: 0271160000
  • PPN: WDM-0271160000

Spec sheet

Available to Order

Company Stock:

0

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Looking to buy a large quantity?

To view product inventory

CAD$1.47/ EA

Description

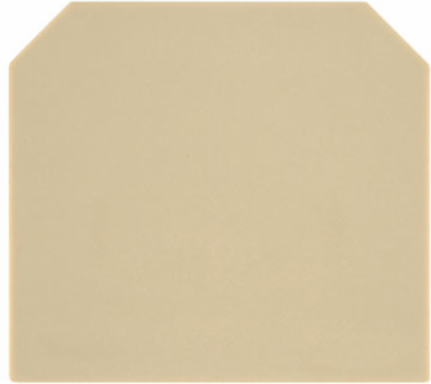

SAK Series, End plate, 1.5 mm, beige, Direct mounting

Specifications

Approvals

ROHS
Conform

Dimensions And Weights

Width
1.5 mm
Height
50 mm
Depth
42 mm
Net weight
3.635 g
Width (inches)0.059 inch
Height (inches)1.969 inch
Depth (inches)1.654 inch

Dimensions

TS 32 offset
35 mm
TS 35 offset35 mm

Additional Technical Data

Installation advice
Direct mounting
Snap-onYes

Material Data

Material
PA 66
UL 94 flammability rating
V-2
Colourbeige

Classifications

ETIM 6.0
EC000886
eClass 9.1
27-14-11-33
UNSPSC
30-21-18-27
ETIM 7.0EC000886
eClass 10.027-14-11-33

System Specifications

Version
End plate

Temperatures

Storage temperature, max.
40 °C
Storage temperature
10 °C...40 °C
Continuous operating temp., max.
100 °C
Storage temperature, min.10 °C
Continuous operating temp., min.-50 °C
