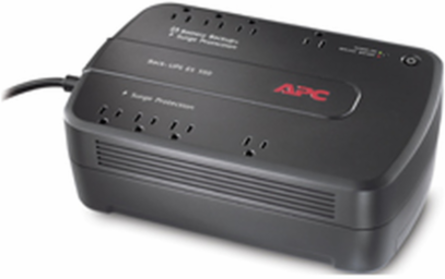

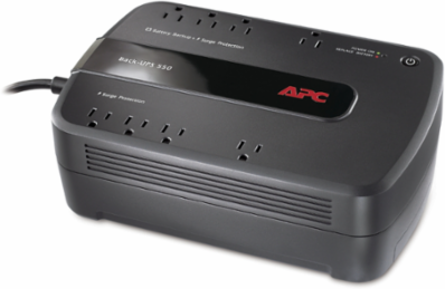

APC BE550G Back-UPS ES 550VA 120V with 8 NEMA Outlets, 3.46 Inch Height, 12.13 lb Weight
- MPN: BE550G
- UPC: 731304258940
- PPN: APC-BE550G
CAD
$173.13
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Back-UPS ES 550VA 120V with 8 NEMA Outlets, 3.46 Inch Height, 12.13 lb Weight
Features

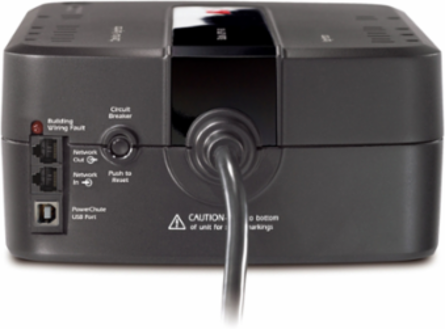

- USB connection — Use your PC to access additional power protection and management features for your UPS via a USB Port.
- Simple battery replacement — Increases UPS availability by allowing quick, easy battery replacement.
- Disconnected battery notification — Warns when a battery is not available to provide backup power.
- Cold-start capable — Provides temporary battery power when the utility power is out.
- Dataline surge protection — Provides protection of connected equipment from power surges on the data lines.
- Hot-swappable batteries — Ensures clean, uninterrupted power to protected equipment while batteries are being replaced
- Lifetime data recovery warranty — Provides peace of mind by providing professional data recovery services in the event data is lost due to the failure of the unit.
- Transformer-block spaced outlets — Protect equipment with input transformer blocks without blocking access to other receptacles.

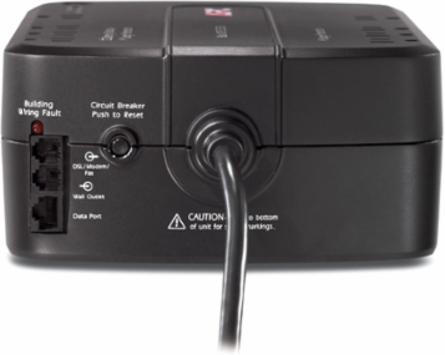

- Building Wiring Fault Indicator — This LED informs users of potentially dangerous wiring problems in the wall circuit.
Documentation & Downloads
Specifications
Additional
- Power Capacity
- 550 VA
- Voltage
- 120 V
- Output Connection Type
- 4 NEMA 5-15R, 4 NEMA 5-15R surge
- Battery Life
- 3-5 years
- Topology
- Standby
- Transfer Time
- 8 ms typical, 12 ms maximum
- Output Frequency
- 50/60 Hz +/- 3 Hz sync to mains
- Heat Dissipation
- 16 Btu/h
- Let Through Voltage Rating
- 330 V
- Storage Temperature Range
- 5–113 °F (-15–45 °C)
- Storage Humidity Range
- 5–95 %
- Storage Altitude
- 0–50,000 ft
- Dimensions (HxWxD)
- 3.46 x 7.09 x 11.89 in (88 x 180 x 302 mm)
- Battery Type
- Lead-Acid battery
- Color
- Black
- Warranty
- 36 months repair or replace
Output Power330 W
Input Connection TypeNEMA 5-15P
Battery Runtime Capacity82 VAh
Typical Recharge Time24 h
Waveform TypeStepped approximation to a sinewave
Input Frequency50/60 Hz +/- 3 Hz auto-sensing
Acoustic Level45 dBA
Surge Energy Rating340 J
Operating Temperature Range32–104 °F (0–40 °C)
Operating Humidity Range5–95 %
Operating Altitude0–10,000 ft
Cable Length5 ft (1.52 m)
Net Weight12.13 lb (5.5 kg)
ComplianceCEC Battery Charger, ENERGY STAR V2.0 (USA), NOM, TÜV-C, RoHS Compliant
Country of OriginPhilippines
