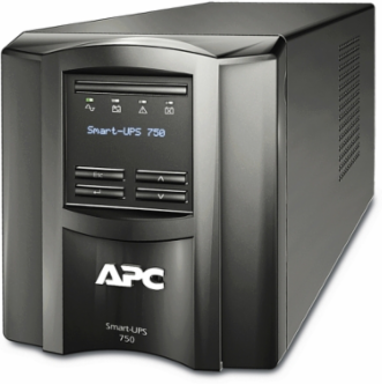

APC SMT750I Smart-UPS Line Interactive 750VA 230V Tower 6x IEC C13 Outlets Sine Wave Output
- MPN: SMT750I
- UPC: 731304269069
- PPN: APC-SMT750I
CAD
$964.18
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Smart-UPS Line Interactive 750VA 230V Tower 6x IEC C13 Outlets Sine Wave Output
Features
- Cold-start capable — Provides temporary battery power when the utility power is out.
- Energy meter — Provides actual kilowatt hours of usage for energy conscious users.
- Green mode — Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
- High online efficiency — Reduces utility costs, generates less heat.
- Intelligent Card Slot — Customize UPS capabilities with management cards.
- Intuitive LCD interface — Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys.
- Predictive replace battery date — Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning.
- Pure sine wave output on battery — Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.
- Temperature-compensated battery charging — Prolongs battery life by regulating the charge voltage according to battery temperature.
Documentation & Downloads
Specifications
Additional
| Power Capacity | 750 VA / 500 W |
|---|---|
| Input Voltage Range | 160-285 V (151-302 V max adjustable) |
| Waveform Type | Sine wave |
| Input Connection Type | IEC 320 C14 |
| Runtime Estimates at Full Load | 5 minutes |
| Topology | Line interactive |
| Dimensions (H x W x D) | 15.75 cm (6.2 in) x 13.8 cm (5.43 in) x 35.81 cm (14.1 in) |
| Mount Position | Front |
| Battery Type | Maintenance-free sealed lead-acid with suspended electrolyte; leak proof |
| Approvals | CE, EAC, RCM, VDE |
| Control Panel | Alpha-numeric LCD display with LED status indicators |
| Color | Black |
| Nominal Output Voltage | 230 V (configurable to 220 or 240 V) |
|---|---|
| Output Frequency | 47-53 Hz for 50 Hz nominal; 57-63 Hz for 60 Hz nominal |

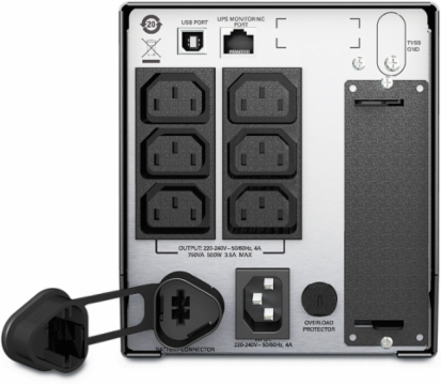

| Output Connections | 8 IEC320 C13 |
| Runtime Estimates at 200W | 22 minutes |
| Emergency Power Off (EPO) | Optional |
| Surge Energy Rating | 540 |
| Net Weight | 13.2 kg (29 lb) |
| Product Orientation | Tower |
| RoHS Compliance | Compliant |
| Communication Ports | SmartSlot, USB, Serial (RJ45) |
| Warranty | 3 years electronics, 2 years battery |
