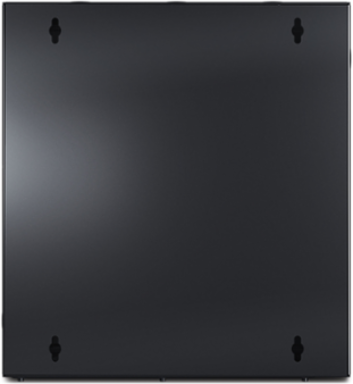

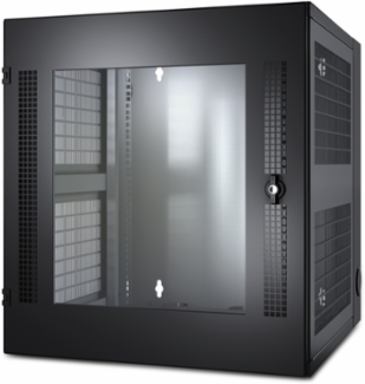

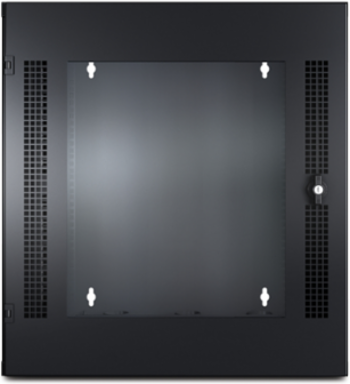

APC AR100 NetShelter 13U Wallmount Rack Cabinet 22.99 Inch Wide, 24.84 Inch Deep, Glass Door
- MPN: AR100
- UPC: 731304111429
- PPN: APC-AR100
CAD
$1408.96
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
NetShelter 13U Wallmount Rack Cabinet 22.99 Inch Wide, 24.84 Inch Deep, Glass Door
Features
- The front mounting rails can be adjusted to allow for various mounting depths and to allow for additional clearance from the front door. — The front mounting rails can be adjusted to allow for various mounting depths and to allow for additional clearance from the front door.
- Ships fully assembled — NetShelter VX Enclosures ship fully assembled reducing the time required to install equipment.
- Doors open 180 degrees — Two people are often required to stand in front of an enclosure on opposite sides to install heavy rack-mount equipment. A door that opens 180 degrees allows for installation of equipment without the need to remove the door making installation fast and easy.
- Adjustable mounting depth — Vertical mounting rails are adjustable for equipment with various mounting depths.
Documentation & Downloads
Specifications
Additional
| Rack Height | 13U |
|---|---|
| Width | 22.99 in |
| Height | 26.10 in |
| Permanent Permissible Load | 200 lb static |
| Door Type | Glass, double hinged, reversible, opens 180 degrees |
| Compliance Standard | EIA-310E |
| ReachFreeOfSVHC | Yes |
| MercuryFree | Yes |
| Customs Number | 9403200090 |
| Color | Black |
| Rack Width | 19 in |
|---|---|
| Depth | 24.84 in |
| Weight | 94.20 lb (42.73 kg) |
| Material Thickness | 16 gauge mounting rail, front door, post; 13 gauge rear door; 18 gauge roof, side panels |
| Mounting | Wall-mount with adjustable mounting depth rails |
| RoHS | Compliant |
| ToxicHeavyMetalFree | Yes |
| WEEE | EU disposal compliant |
| Warranty | 60 months |
