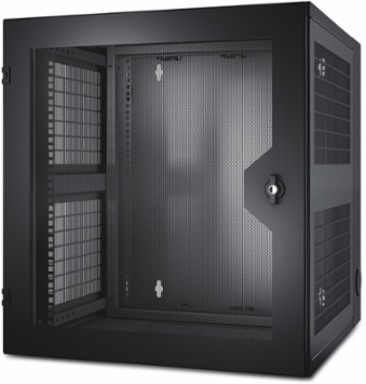

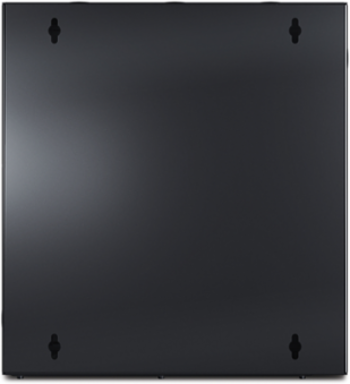

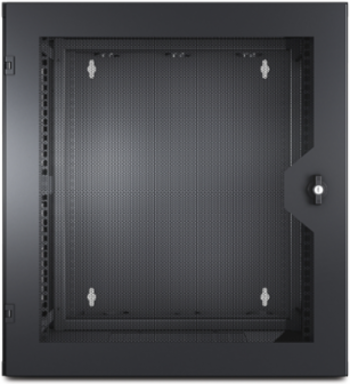

APC AR100HD 13U Wallmount Rack Cabinet 24.84 Inch Depth, 94.20 lb Weight, Vented Door
- MPN: AR100HD
- UPC: 731304111467
- PPN: APC-AR100HD
CAD
$1408.96
/ EA
Available to Order from Manufacturer
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Ideal for retail, healthcare, and educational facilities, the wall rack offers an efficient solution for deploying server and networking equipment for edge computing applications. For areas with limited floor space. Designed to house your server, as well as network solutions such as network switches and patch panels. Rack hinges at the rear allowing for access to the back of the rack during installation and setup or while undergoing maintenance. The door is reversible allowing for the door to open direction desired to avoid interference with its surroundings. Optional 120V fan tray top mounted and caster kit. Several APC Smart-UPS models low-profile provide easy UPS integration and mounting. 13U Wall mount cabinet, 19 inches maximum mounting depth, 200lb weight capacity, 19"" rack width, ships fully assembled, vented door, 5 year APC warranty
Features
- The front mounting rails can be adjusted to allow for various mounting depths and to allow for additional clearance from the front door.
- Ships fully assembled — NetShelter VX Enclosures ship fully assembled reducing the time required to install equipment.
- Doors open 180 degrees — Two people are often required to stand in front of an enclosure on opposite sides to install heavy rack-mount equipment. A door that opens 180 degrees allows for installation of equipment without the need to remove the door making installation fast and easy.
- Adjustable mounting depth — Vertical mounting rails are adjustable for equipment with various mounting depths.
- Efficient and secure edge computing solution when floor space is limited
- Wallmount Rack Enclosure
- 13U, 631mm deep, Max. load 200lb
- Rear hinging for equipment installation & mainteance
- Reversible single-hinge front door
- Adjustable front mounting rails with square or #12-24 tapped holes
- Ventilated front door
- Fan tray AR8206ABLK sold separately
- Ships pre-assembled
- 5 year APC warranty
Documentation & Downloads
Specifications
Additional
| Rack Units | 13U |
|---|---|
| Weight | 94.20 lb (42.7 kg) |
| Height | 26.10 in (66.3 cm) |
| Material Thickness | 16 gauge (mounting rail, front door, post), 13 gauge (rear door), 18 gauge (roof, side panels) |
| Door | Vented, Double Hinged, Opens 180 degrees |
| Mounting Mode | Wall-mount |
| Warranty | 60 months |
| Customs Number | 9403200090 |
| Depth | 24.84 in (63.1 cm) |
|---|---|
| Rack Width | 19 in |
| Width | 22.99 in (58.4 cm) |
| Permanent Permissible Load | 200 lb static |
| Color | Black |
| Standards | EIA-310E |
| RoHS | Compliant |
