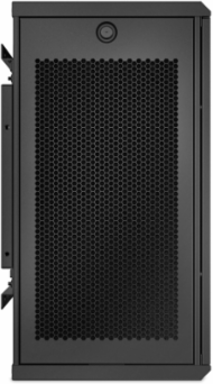

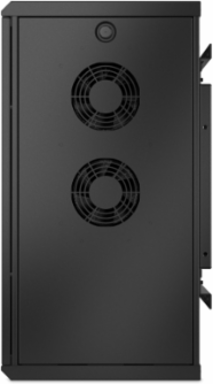

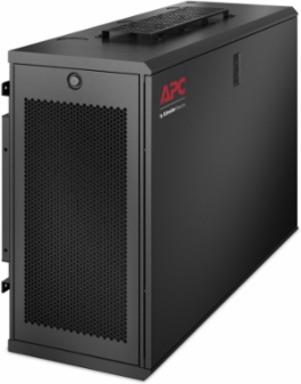

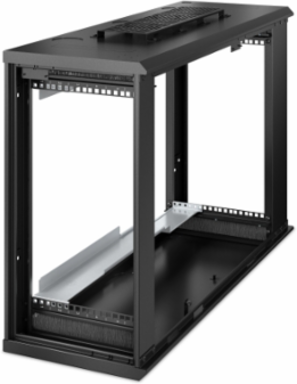

APC AR106VI Low-Profile 6U Wall-Mount Rack Enclosure Cabinet 230V, Supports 250lbs, 30 Inch Depth
- MPN: AR106VI
- UPC: 731304402015
- PPN: APC-AR106VI
CAD
$1910.45
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Low-Profile 6U Wall-Mount Rack Enclosure Cabinet 230V, Supports 250lbs, 30 Inch Depth
Features
- Air filtration and ventilation — Replaceable MERV 5/G3 dust filter and integrated fans allow equipment to be placed in dusty and light industrial environments
- Enhanced physical security — Protect against physical and environmental threats with camera monitoring, keylock doors, intrusion detection, temperature/humidity monitoring, leak detection, and more
- High weight load capacity — Supports equipment up to 250lbs (113kg) of total load
- Integrator Ready — Shock Packaging allows all equipment to be pre-integrated into the enclosure before it arrives on-site, speeding up and standardizing deployments
- Low-Profile Design — Extends less than 13” (330mm) off of the wall while supporting equipment up to 30” (762mm) deep, including 1 and 2U hyperconverged servers, UPS, and network switches
- Wall mount or floor standing — The detachable wall bracket and optional casters allow the enclosure to be mounted on the wall or floor, depending on the site requirements
Documentation & Downloads
Specifications
Additional
| Input Voltage | 230V |
|---|---|
| Rack Width | 19 in |
| Input Connection Type | IEC 60320 C13 |
| Height | 25.51 in (64.8 cm) |
| Mount Position | Vertical, Wall |
| Product Orientation | Tower |
| Color | Black |
| Approvals | UL 2416 |
| Filter | Replaceable MERV 5 / G3 dust filter |
| Rack Height | 6U |
|---|---|
| Weight Capacity | 250 lbs (113 kg) |
| Depth | 38.11 in (96.8 cm) |
| Width | 13.9 in (35.3 cm) |
| Mounting Options | Wall mount or floor standing (detachable wall bracket, optional casters) |
| Design Profile | Low-profile - extends less than 13 in (330 mm) off wall |
| RoHS | Compliant |
| Fans Quantity | 2 |
