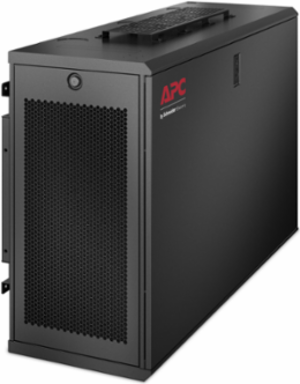

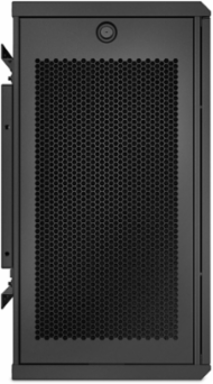

APC AR106V NetShelter 6U Low-Profile Wallmount Rack Enclosure Cabinet 120V, 250 lbs Load Capacity, 19" Width
- MPN: AR106V
- UPC: 731304402022
- PPN: APC-AR106V
CAD
$1910.45
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
APC by Schneider Electric 6U Wall-Mount is an innovative new way to deploy server and networking equipment at the edge. Ideal for retail, healthcare, educational facilities and light industrial spaces, the low-profile design offers an efficient solution for deploying hyperconverged server and networking applications. The rack enclosure allows longer depth equipment to be wall mounted, up to 30 inches deep. A detachable wall bracket and optional casters (sold separately) allow the server rack to be mounted on either the wall or stand alone on the floor. A dust filter and two integrated fans allow deployment in light-industrial environments. APC Smart-UPS, APC NetBotz Physical and Environmental Security, and APC EcoStruxure IT can be configured with this cabinet (sold separately). 6U vertical wall-mount cabinet, 30 in mounting depth, 250 lb weight capacity, 19" rack width, side panels for access to equipment, ships fully assembled, UL2416 Listed, MERV 5 dust filter and 120V integrated fans included. Input connector IEC 60320 C13 with 500VA - 1.5kVA output power capacity.
Features

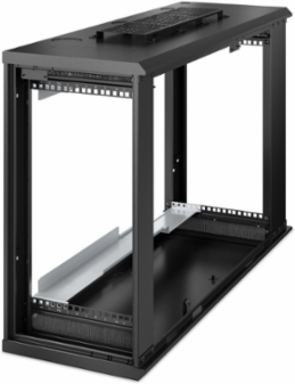

- Extends less than 13" 330mm off of the wall while supporting equipment up to 30" 762mm deep, including 1 and 2U hyperconverged servers, UPS, and network switches
- Supports equipment up to 250lbs 113kg of total load

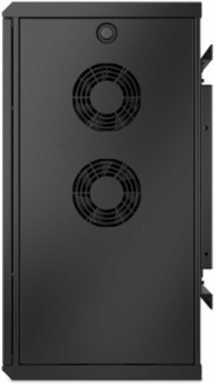

- Replaceable MERV 5/G3 dust filter and integrated fans allow equipment to be placed in dusty and light industrial environments
- The detachable wall bracket and optional casters allow the enclosure to be mounted on the wall or floor, depending on the site requirements
- Shock Packaging allows all equipment to be pre-integrated into the enclosure before it arrives on-site, speeding up and standardizing deployments
- Protect against physical and environmental threats with camera monitoring, keylock doors, intrusion detection, temperature/humidity monitoring, leak detection, and more
- Efficient and secure edge computing solution when floor space is limited
- Wallmount Rack Enclosure
- 6U, 30in mounting depth, Max.load 250lb
- Wallmount or stand alone with optional casters
- Vertical device mounting
- Fan and dust filter included
- Shock packaging included for easy integration
- APC Smart-UPS, Casters AR8471, Netbotz NBRK0750 are sold separately
- Ships pre-assembled
- 5 year APC warranty
Documentation & Downloads
Specifications
Additional
| Input Voltage | 100 V, 120 V |
|---|---|
| Load Capacity | 250 lb |
| Rack Unit Height | 6U |
| Mounting Depth | 30 in |
| Width | 13.90 in |
| Weight | 80.01 lb (36.29 kg) |
| Mounting Position | Vertical |
| RoHS Compliance | Compliant |
| UL Certification | UL 2416 |
| Warranty | 60 months |
| Input Frequency | 60 Hz |
|---|---|
| Air Flow | 220 ft3/min |
| Rack Width | 19 in |
| Height | 25.51 in |
| Depth | 38.11 in |
| Input Connection Type | IEC 60320 C13 |
| Dust Filter | MERV 5/G3 |
| REACH Compliance | Free of SVHC |
| EIA Standard | EIA-310E |
