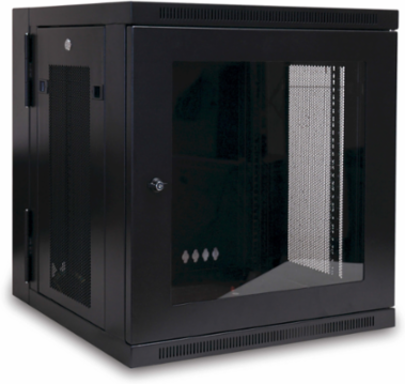

Tripp Lite SRW12USG 12U Low-Profile Wall-Mount Rack Enclosure Cabinet, Supports Up to 20.5 Inch Depth, 200 lbs Load Capacity
- MPN: SRW12USG
- UPC: 037332154859
- PPN: TRP-SRW12USG
CAD
$1052.41
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Wall-mount cabinet secures and organizes 12U of 19-inch rack equipment up to 20.5 inches deep in locations with limited floor space. Clear acrylic window allows you to monitor equipment without unlocking door.
Features
- Maximum load capacity of 200 lb.

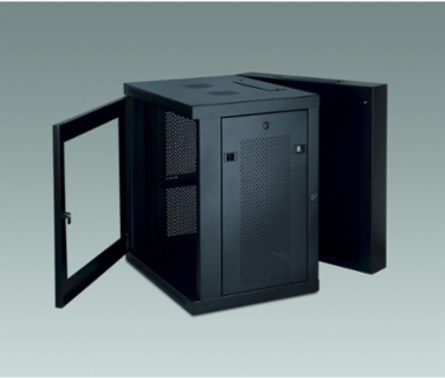

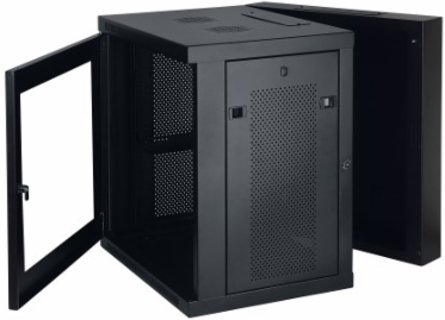

- Swings away from wall on hinge for easy back-door access
- Front door includes shatter-resistant clear acrylic window
- Locking steel cabinet vented at sides, top and bottom
- Secures 12U of 19 in. rack equipment up to 20.5 in. deep
- 5-year limited warranty
Documentation & Downloads
Specifications
Additional
- Weight Capacity - Stationary
- 200 lb
- Minimum Device Depth
- 3 in
- Rack Height
- 12U
- Unit Dimensions (H x W x D)
- 25 x 23.63 x 21.6 in
- Unit Weight
- 60 lb
- Material
- Heavy-duty steel
- Color
- Black
- Approvals
- UL/CSA 60950-1, EIA-310-D, IEC 60297-3-100, IP20 Protection, RoHS
Maximum Device Depth20.5 in
Factory Preset Rack Depth10.42 in
Rack TypeEnclosure
Shipping Dimensions (H x W x D)26 x 24.3 x 28 in
Shipping Weight66 lb
FinishBlack powder-coated
Grounding LugFront and back door frames
Product Warranty Period5-year limited warranty
