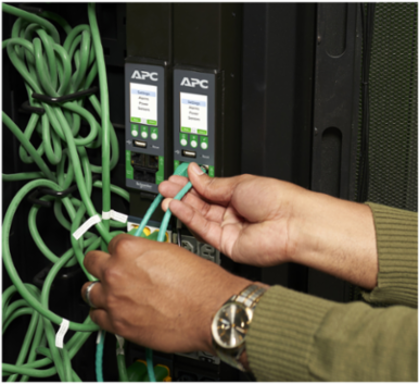

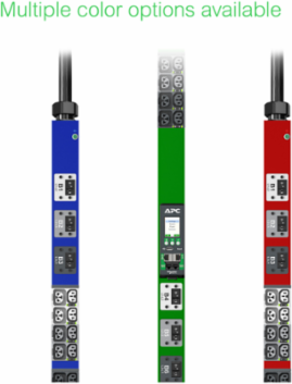

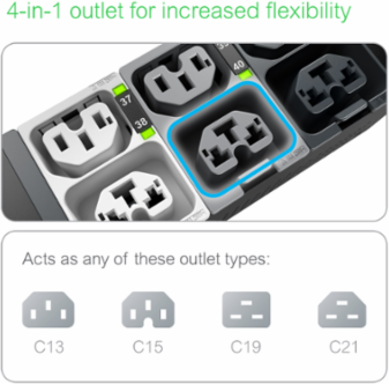

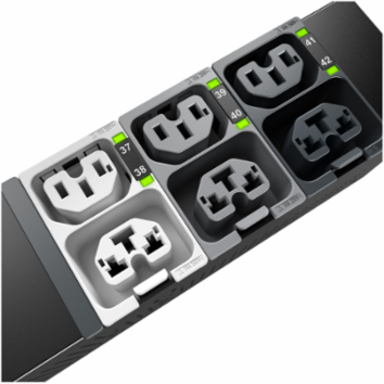

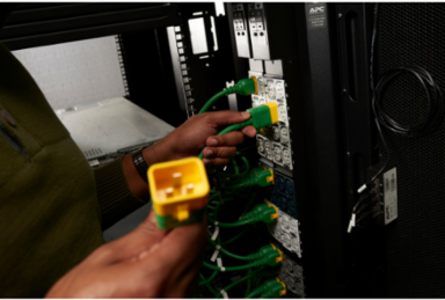

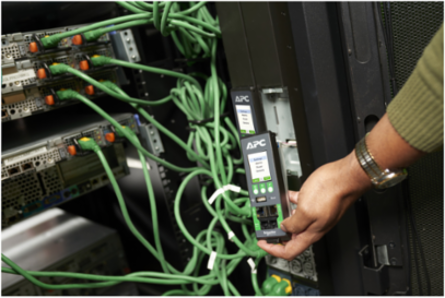

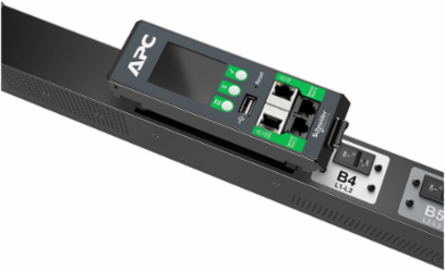

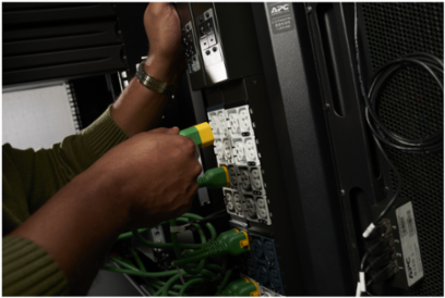

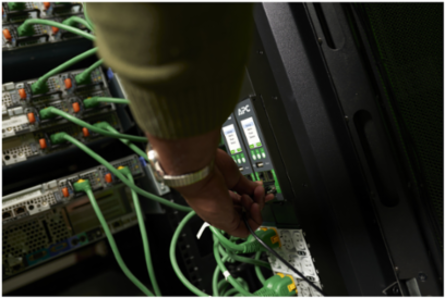

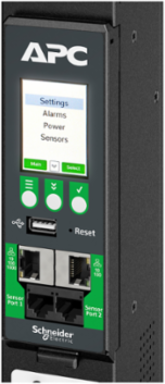

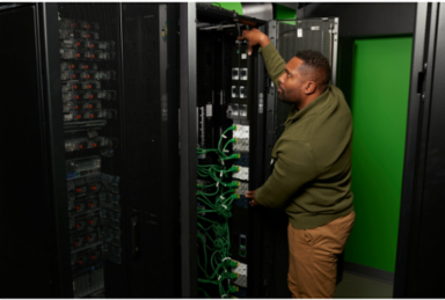

APC APDU10350MO NetShelter Rack PDU Advanced, Metered Outlet, 48 Outlets, 22.1kW 400V, 32A
- MPN: APDU10350MO
- UPC: 731304439738
- PPN: APC-APDU10350MO
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
NetShelter Rack PDU Advanced, Metered Outlet, 48 Outlets, 22.1kW 400V, 32A
Documentation & Downloads
Specifications
Additional
| Power Capacity | 22.1 kW |
|---|---|
| Current | 32 A, 30 A, 24 A |
| Output Voltage | 240 V |
| Input Frequency | 50/60 Hz |
| Width | 2.20 in (5.6 cm) |
| Weight | 21.2 lb (9.6 kg) |
| Mounting Location | Side, vertical |
| IP Degree of Protection | IP44 |
| Storage Temperature Range | -13 to 149 F (-25 to 65 C) |
| Operating Altitude | 0 to 10000 ft |
| Compliance | UKCA, TAA, BAA, UL 62368-1, CSA C22.2 No 62368-1, FCC part 15 Subpart B, CE, EN 62368-1, RoHS Compliant, REACH SVHC Free |
| Rack Height | 0U |
| Voltage | 400 V 3 phase, 415 V 3 phase |
|---|---|
| Load Capacity | 17300 VA |

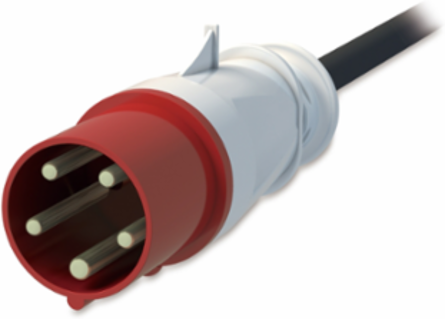

| Input Plug Type | IEC 60309 30 A 3P+N+PE |
| Height | 70.08 in (178.0 cm) |
| Depth | 2.95 in (7.5 cm) |
| Cord Length | 5.9 ft (1.8 m) |
| Mounting Mode | Rack-mounted |
| Operating Temperature Range | 23 to 140 F (-5 to 60 C) |
| Relative Humidity | 5 to 95 % |
| Storage Altitude | 0 to 50000 ft (0 to 15240 m) |
| Customs Number | 8537109170 |
