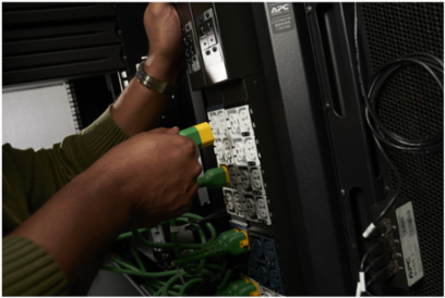

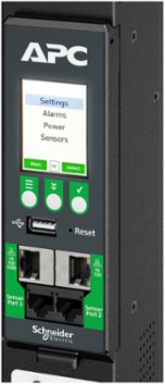

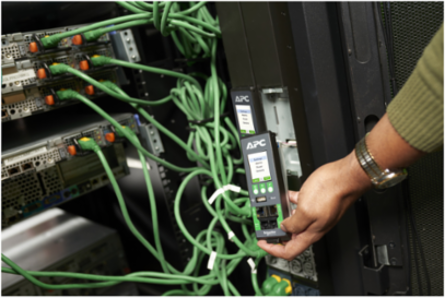

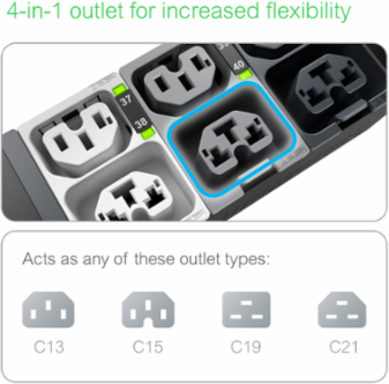

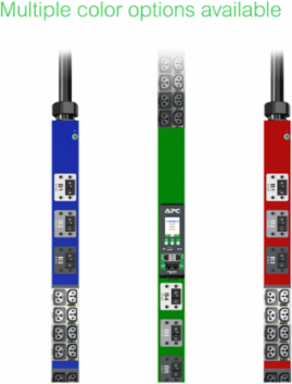

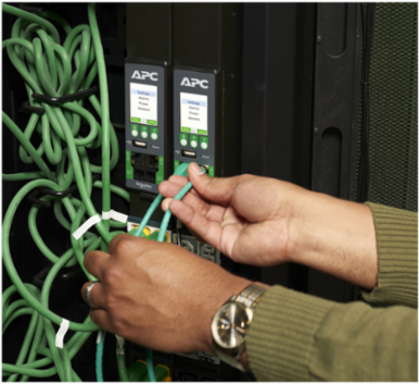

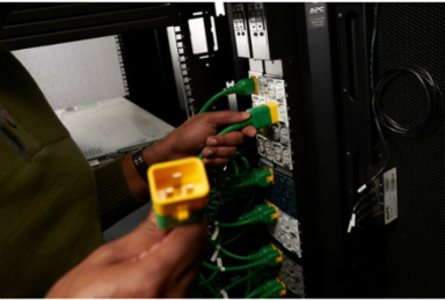

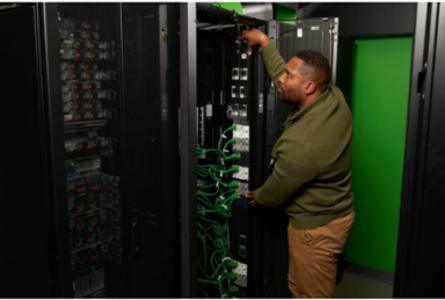

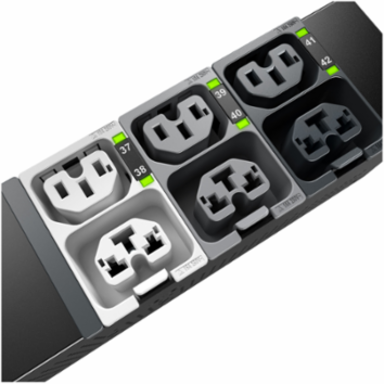

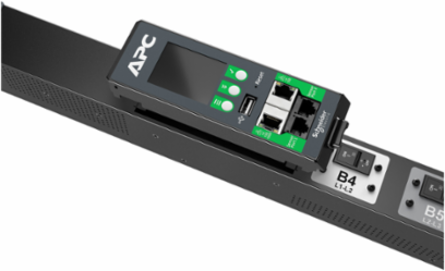

APC APDU10350SW NetShelter Rack PDU Advanced 3Phase 22.1kW 400V 32A 48 Outlets
- MPN: APDU10350SW
- UPC: 731304439721
- PPN: APC-APDU10350SW
CAD
$4962.69
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
NetShelter Rack PDU Advanced 3Phase 22.1kW 400V 32A 48 Outlets
Documentation & Downloads
Specifications
Additional
| Power Rating | 22.1 kW |
|---|---|
| Amperage | 32 A |
| Input Current Limits | 30 A |
| Input Frequency | 50/60 Hz |

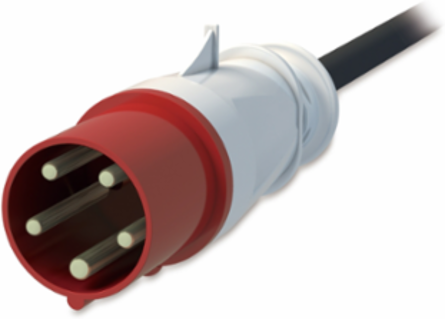

| Input Connection Type | IEC 60309 30A 3P+N+PE |
| Rack Units | 0U |
| Depth | 2.95 in (7.5 cm) |
| Cord Length | 5.91 ft (1.8 m) |
| Compliance | UKCA, TAA compliant, BAA compliant |
| Operating Temperature | 23 to 140 b0F (-5 to 60 b0C) |
| Operating Altitude | 0 to 10000 ft |
| Relative Humidity | 5 to 95 % |
| Voltage | 400 V, 415 V 3 Phase |
|---|---|
| Phases | 3 Phase |
| Load Capacity | 17300 VA |
| Output Voltage | 240 V |
| Mount Position | side, vertical |
| Weight | 21.16 lb (9.6 kg) |
| Width | 2.20 in (5.6 cm) |
| Height | 70.08 in (178.0 cm) |
| RoHS | Compliant |
| Storage Temperature | -13 to 149 b0F (-25 to 65 b0C) |
| Storage Altitude | 0 to 50000 ft (0 to 15240 m) |
