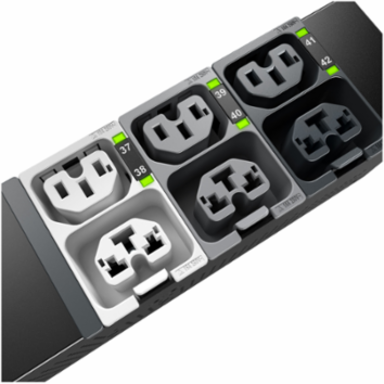

APC APDU10250SM NetShelter Rack PDU Advanced, 3Phase 11kW 400V 16A, 48 Outlets, IEC 60309
- MPN: APDU10250SM
- UPC: 731304439707
- PPN: APC-APDU10250SM
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
NetShelter Rack PDU Advanced, 3Phase 11kW 400V 16A, 48 Outlets, IEC 60309
Documentation & Downloads
Specifications
Additional
- Voltage
- 400 V, 415 V 3 phase
- Power Capacity
- 11 kW
- Input Current Limits
- 20 A
- Input Frequency
- 50/60 Hz

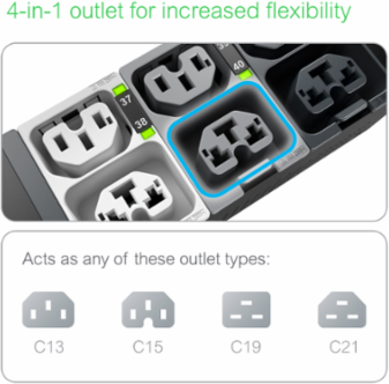

- Outlets
- 48 total (24 C13, 15 C15, 9 C19, 21 C21)
- Height
- 58.66 in (149.0 cm)
- Depth
- 2.95 in (7.5 cm)

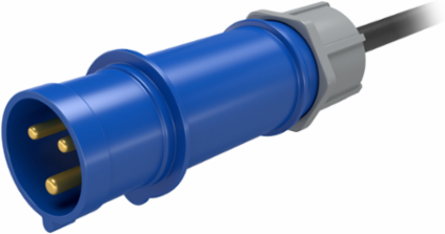

- Input Plug Type
- IEC 60309 20 A 3P+N+PE
- Rack Units
- 0U
- Storage Temperature Range
- -13-149 F (-25 to 65 C)
- Storage Altitude
- 0-50,000 ft (0-15,240 m)
- Storage Humidity Range
- 5-95%
- Standards
- UL 62368-1, CSA C22.2 No 62368-1, FCC part 15 Subpart B, CE, EN 62368-1
- RoHS Compliance
- Compliant
Amperage16 A
Input Voltage Range200-240 V, 346-415 V
Load Capacity11500 VA
Output Voltage240 V
Cord Length5.91 ft (1.8 m)
Width2.20 in (5.6 cm)
Weight16.98 lb (7.7 kg)
Mounting Positionside, vertical
Operating Temperature Range23-140 F (-5 to 60 C)
Operating Altitude0-10,000 ft
Operating Humidity Range5-95%
Product CertificationsTAA, UKCA, BAA
IP Degree of ProtectionIP44
