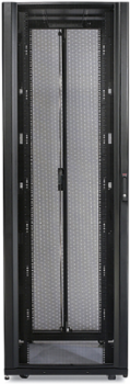

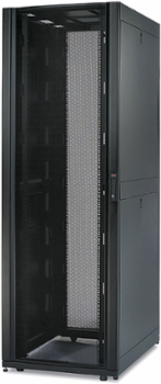

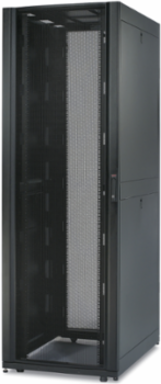

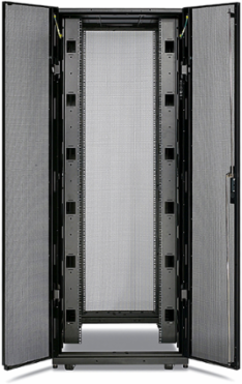

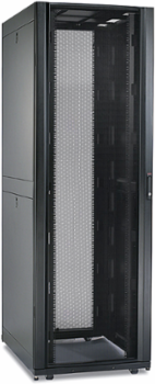

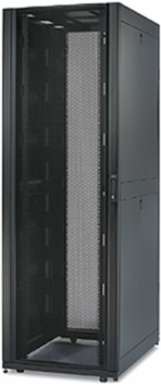

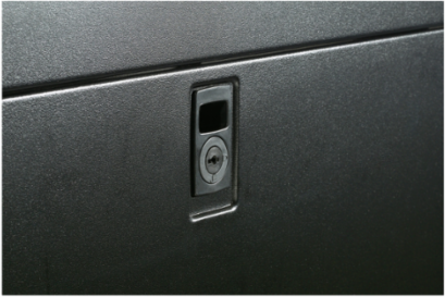

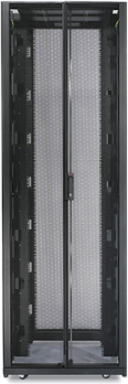

APC AR3155 NetShelter SX Server Rack Enclosure 45U, 29.53 Inch Width, 42.13 Inch Depth, 341.72 lb
- MPN: AR3155
- UPC: 731304290209
- PPN: APC-AR3155
CAD
$4798.51
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This enclosure is designed to meet current IT market trends and applications ranging from high density computing and networking to broadcast and audio-video. The rack height is 45U, 750mm Wide x 1070mm Deep . It provides a reliable rack-mounting environment for mission-critical equipment.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | China, France, United States |
|---|
| Depth | 1070 mm |
|---|
Physical Attributes
| Color | Black |
|---|
| Rack Width | 19" |
|---|
Complementary Attributes
| Maximum Mounting Depth | 914.9 mm |
|---|
| Minimum Mounting Depth | 261.9 mm |
|---|
Important Information Attributes
| Persona Type Ids | EUA, OM, VR |
|---|---|
| Market Segmentation Id | RESIDENTIAL, INDUSTRIAL |
| Marking | 14 gauge EIA mounting rail16 gauge front door, 16 gauge post18 gauge rear door, 18 gauge roof, 18 gauge side panels |
| Certificate Agency | UL 2416, UL 60950-1, EIA-310E |
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 13 kg CO2 eq., 12.83744503957151 |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 577 kg CO2 eq., 577.1340634742985 |
| Local Data Status | Publishable |
| Pre Comm Date | 2011-11-15 |
| Stocking Flag | Y |
| Device Type | Racks and Accessories - Racks and Enclosures |
| Traceability | No |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| Reach Full Compliance Status | Free of Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Free of Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | No |
| Tier Id | 3 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Allow Top Mount | No |
| Door Type | Fully Ventilated |
| Maximum Mounting Depth | 914.9 mm |
| Mounting Mode | not rack-mountable |
| Number Of Rack Unit | 45U |
| Product Or Component Type | rack enclosure |
| Software Version | v6.2.5-6 |
| Total Lifecycle Carbon Footprint | 605 kg CO2 eq. |
| Pep Code | ENVPEP1512008EN |
| Pep Verification Date | 2025-10-25 |
| Psr Version | PSR-0005-ed3.1-EN-2023 12 08 |
| Data Source | extrapolated product |
| Functional-unit Quantity | 1 |
| Reference Lifetime In Y | 20 |
| Energy Model - Installation [A5] | No energy used |
| Energy Model - End Of Life [C1-c4] | Global, European and French datasets are used. |
| Height Nominal | 2124 mm |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 9403200090 |
| Persona Type Names | Consumer, Original Equipment Manufacturer, IT Channel Partner |
|---|---|
| Market Segmentation | Residential, Industrial |
| Provided Equipment | Baying hardware, Key(s), Keyed-alike doors and, Leveling feet, Mounting Hardware, Pre-installed casters, Side Panels |
| Carbon Footprint Of The Distribution Phase [A4] | 14.600527620113517, 15 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase [A5] | 0, 0 kg CO2 eq. |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | kg CO2 eq., 0 |
| Local Publishable Date | 2026-04-23 |
| Return Indicator | Y |
| Stock Policy | 2 |
| Serviceability | No |
| Field Service Division | SPIBS |
| Weee Product Category | 4 |
| Eoli Availability Display | No need of specific recycling operations |
| Reach Full Compliance Status Id | NOT_CONTAINING_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 2405 |
| China Rohs In Scope | No |
| With Recycled Cardboard | No |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 3 |
| Function Option | Standard |
| Additional Specification | premium datacenter enclosures - black |
| Baying Included | no |
| Energy Efficiency Optimized | False |
| Minimum Mounting Depth | 261.9 mm |
| Mounting Preference | no preference |
| Permanent Permissible Load | 2250 lb(US) dynamic3750 lb(US) static |
| Returnability | Yes |
| Sustainable Packaging | No |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Database Version | 2025-30 |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
| Functional-unit Description | The functional unit is the transmission of electricity between electrical/electronic equipment and a power source for a distance of 2.5m for up to 10A of current at 230V AC |
| Functional-unit Unit | unit |
| Energy Model - Manufacturing [A1-a3] | Electricity Mix; High voltage; 2020; Asia Pacific, APAC |
| Energy Model - Use [B6] | Electricity Mix; Low voltage; 2020; Europe, EU-27 |
| Recyclability Potential In % | 95 |
| Width Nominal | 750 mm |
| Package Weight(Lbs) | 171.5 kg |
| Warranty (In Months) | 60 |
Environment Attributes Main
| China Rohs Regulation | Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope) |
|---|---|
| Reach Free Shvc | Yes |
| Carbon Footprint | 604.6822287952674 |
| Eu Rohs Directive | Compliant |
| Packaging Made With Recycled Cardboard | No |
| Reach Free Of Svhc | Yes |
| Pep Code | ENVPEP1512008EN |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
| Take Back | No |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Environmental Disclosure | ENVPEP1512008EN |
| Ip Degree Of Protection | IP20 |
| Packaging Without Single Use Plastic | No |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Pep Verification Date | 2025-10-25 |
| Psr Version | PSR-0005-ed3.1-EN-2023 12 08 |
General Attributes
| Provided Equipment | Baying hardware, Key(s), Keyed-alike doors and, Leveling feet, Mounting Hardware, Pre-installed casters, Side Panels |
|---|---|
| Product Or Component Type | rack enclosure |
| Additional Specification | premium datacenter enclosures - black |
|---|
ETIM
| ETIM 8 | EC002499 |
|---|
| ETIM 9 | EC002499 |
|---|
Contractual Warranty Attributes
| Warranty Period | 5 year repair or replace |
|---|
| Warranty | 5 year repair or replace |
|---|
Overview Attributes
| Presentation | This enclosure is designed to meet current IT market trends and applications ranging from high density computing and networking to broadcast and audio-video. The rack height is 45U, 750mm Wide x 1070mm Deep . It provides a reliable rack-mounting environment for mission-critical equipment. |
|---|
