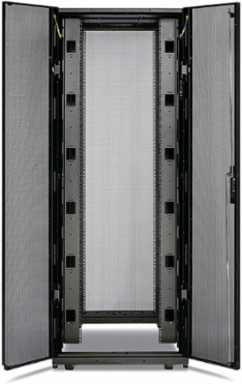

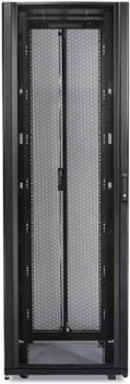

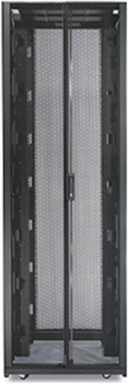

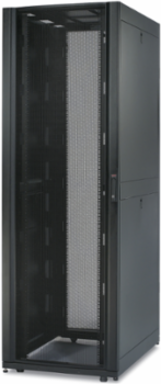

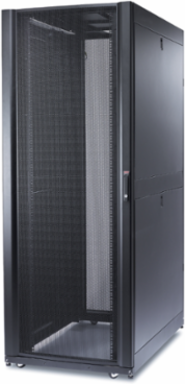

APC AR3355 NetShelter SX Server Rack Enclosure 45U 83.62 Inch x 29.53 Inch x 47.24 Inch
- MPN: AR3355
- UPC: 731304290223
- PPN: APC-AR3355
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Feature-rich rack enclosure optimized for easy installation, managing cables, integrating power distribution, and maximizing airflow. Includes: Baying hardware, Key(s), Keyed-alike doors and side panels, Leveling feet, Mounting hardware, Pre-installed casters, Side panels. Split rear doors improve access and serviceability to rear of rack mounted equipment. The split rear doors help to maximize floor space. Only 11 inches (279 mm) of clearance is required behind the enclosures to allow for door swing. Enclosures include pre-installed joining hardware to join enclosures in a row and provide additional stability to the enclosure. Enclosures are shipped standard with both leveling feet and castors. Leveling feet can be quickly adjusted through the use of a screwdriver or drill, eliminating the need to reach underneath with a wrench. Integrated and adjustable rear accessory channel provides zero U mounting locations for toolless accessories. Each channel has two mounting bays to support a combination of up to four accessories such as PDUs and vertical cable organizers. Enclosures with shock packaging are standard enclosures with provisions in the packaging design and enclosure assembly for shipping the enclosures with equipment mounted inside.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | United States |
|---|
| Depth | 1200 mm |
|---|
Physical Attributes
| Color | Black |
|---|
| Rack Width | 19" |
|---|
Complementary Attributes
| Maximum Mounting Depth | 1048 mm |
|---|
| Minimum Mounting Depth | 261.9 mm |
|---|
Important Information Attributes
| Persona Type Ids | EUA, OM, SC, VR |
|---|---|
| Market Segmentation Id | RESIDENTIAL, COMMERCIAL, INDUSTRIAL |
| Marking | 14 gauge EIA mounting rail16 gauge front door, 16 gauge post18 gauge rear door, 18 gauge roof, 18 gauge side panels |
| Certificate Agency | UL 2416, UL 60950-1, EIA-310E |
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 14 kg CO2 eq., 14.036997361899433 |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 631 kg CO2 eq., 631.0624350467664 |
| Local Data Status | Publishable |
| Pre Comm Date | 2011-11-15 |
| Stocking Flag | Y |
| Device Type | Racks and Accessories - Racks and Enclosures |
| Traceability | No |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | No |
| Tier Id | 2 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Allow Top Mount | No |
| Door Type | Fully Ventilated |
| Maximum Mounting Depth | 1048 mm |
| Mounting Mode | not rack-mountable |
| Number Of Rack Unit | 45U |
| Product Availability | Stock - Normally stocked in distribution facility |
| Returnability | No |
| Sustainable Packaging | No |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Database Version | 2025-30 |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
| Functional-unit Description | The functional unit is the transmission of electricity between electrical/electronic equipment and a power source for a distance of 2.5m for up to 10A of current at 230V AC |
| Functional-unit Unit | unit |
| Energy Model - Manufacturing [A1-a3] | Electricity Mix; High voltage; 2020; Asia Pacific, APAC |
| Energy Model - Use [B6] | Electricity Mix; Low voltage; 2020; Europe, EU-27 |
| Recyclability Potential In % | 95 |
| Width Nominal | 750 mm |
| Package Weight(Lbs) | 188.4 kg |
| Warranty (In Months) | 60 |
| Persona Type Names | Consumer, Original Equipment Manufacturer, Electrician, IT Channel Partner |
|---|---|
| Market Segmentation | Residential, Commercial, Industrial |
| Provided Equipment | Baying hardware, Key(s), Keyed-alike doors and, Leveling feet, Mounting Hardware, Pre-installed casters, Side Panels |
| Carbon Footprint Of The Distribution Phase [A4] | 15.96482532576545, 16 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase [A5] | 0, 0 kg CO2 eq. |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | kg CO2 eq., 0 |
| Local Publishable Date | 2026-04-23 |
| Return Indicator | N |
| Stock Policy | 2 |
| Serviceability | No |
| Field Service Division | SPIBS |
| Weee Product Category | 4 |
| Eoli Availability Display | No need of specific recycling operations |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 2405 |
| China Rohs In Scope | No |
| With Recycled Cardboard | No |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 2 |
| Function Option | Standard |
| Additional Specification | premium datacenter enclosures - black |
| Baying Included | no |
| Energy Efficiency Optimized | False |
| Minimum Mounting Depth | 261.9 mm |
| Mounting Preference | no preference |
| Permanent Permissible Load | 2250 lb(US) dynamic3750 lb(US) static |
| Product Or Component Type | rack enclosure |
| Software Version | v6.2.5-6 |
| Total Lifecycle Carbon Footprint | 661 kg CO2 eq. |
| Pep Code | ENVPEP1512008EN |
| Pep Verification Date | 2025-10-25 |
| Psr Version | PSR-0005-ed3.1-EN-2023 12 08 |
| Data Source | extrapolated product |
| Functional-unit Quantity | 1 |
| Reference Lifetime In Y | 20 |
| Energy Model - Installation [A5] | No energy used |
| Energy Model - End Of Life [C1-c4] | Global, European and French datasets are used. |
| Height Nominal | 2124 mm |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 9403200090 |
Environment Attributes Main
| China Rohs Regulation | Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope) |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Environmental Disclosure | ENVPEP1512008EN |
| Ip Degree Of Protection | IP20 |
| Packaging Without Single Use Plastic | No |
| Pep Code | ENVPEP1512008EN |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
| Take Back | No |
|---|---|
| Carbon Footprint | 661.1847469821728 |
| Eu Rohs Directive | Compliant |
| Packaging Made With Recycled Cardboard | No |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Pep Verification Date | 2025-10-25 |
| Psr Version | PSR-0005-ed3.1-EN-2023 12 08 |
General Attributes
| Provided Equipment | Baying hardware, Key(s), Keyed-alike doors and, Leveling feet, Mounting Hardware, Pre-installed casters, Side Panels |
|---|---|
| Product Or Component Type | rack enclosure |
| Additional Specification | premium datacenter enclosures - black |
|---|
ETIM
| ETIM 8 | EC002499 |
|---|
| ETIM 9 | EC002499 |
|---|
Contractual Warranty Attributes
| Warranty Period | 5 year repair or replace |
|---|
| Warranty | 5 year repair or replace |
|---|
