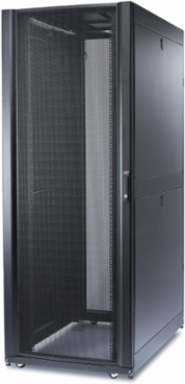

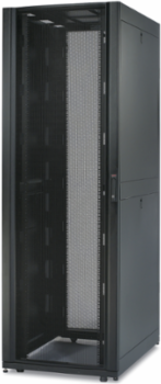

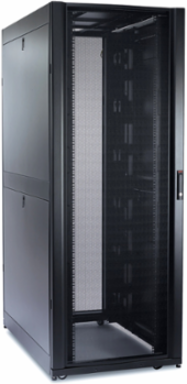

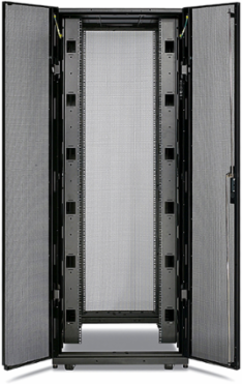

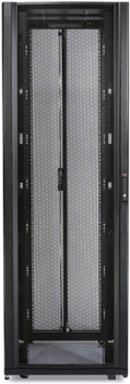

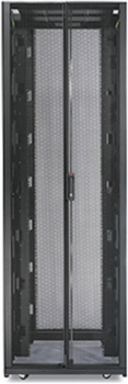

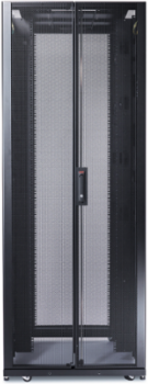

APC AR3357 NetShelter SX Server Rack Enclosure 48U 88.90 Inch Height 19 Inch Width Black
- MPN: AR3357
- UPC: 731304259367
- PPN: APC-AR3357
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Designed for high density environments with standard features for speed of deployment and installation. Wide rack design provides space for passing cabling from front-to-back and ensures plenty of clearance at the back for rack accessories and limits interference with IT device hot swap components. Very ideal for blade, converged, and hyperconverged devices. Deeper rack design provides enough rack mounting space for even the deepest devices and still plenty of room for vertically mounting accessories. 48U height allows for an additional 6U of rack mounting space maximizing u-space per rack footprint.
Features
- Wide rack design provides space for passing cabling from front to back
- Ideal for the blade, converged, and hyper-converged devices
- Deeper rack design provides enough rack mounting space for even the deepest devices
- 48U height allows for an additional 6U of rack mounting space
- Increased cable management options
- Plenty of clearance at the back for Rack PDUs and cable managers
- Plenty of room for vertically mounting Rack PDUs and cable management
Documentation & Downloads
Specifications
Additional
| Height | 88.90 in (225.8 cm) |
|---|---|
| Width | 29.53 in (75 cm) |
| Weight | 408.85 lb (185.45 kg) |
| Rack Width | 19 in |
| Maximum Mounting Depth | 41.26 in |
| Compliance | TAA, BAA via COTS, UL 2416, UL 60950-1, EIA-310E, RoHS Compliant |
| Depth | 47.24 in (120 cm) |
|---|---|
| Number of Rack Units | 48U |
| Permanent Permissible Load | 2250 lb dynamic, 3750 lb static |
| Minimum Mounting Depth | 10.31 in |
| Material Gauge | 14 gauge EIA mounting rail, 16 gauge front door/post/rear door, 18 gauge roof/side panels |
| Color | Black |
