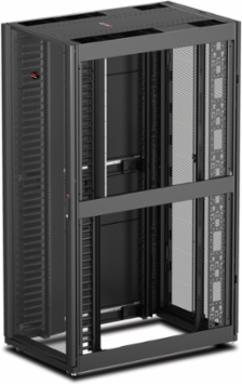

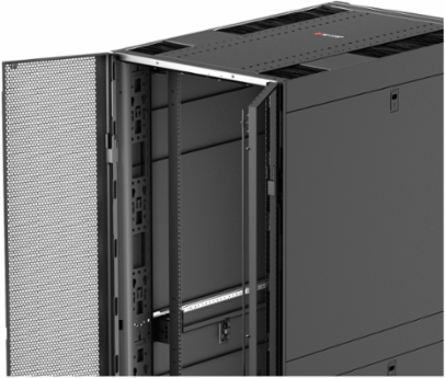

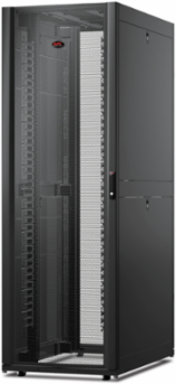

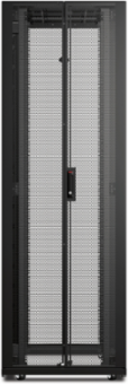

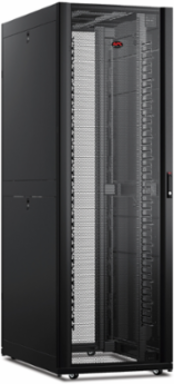

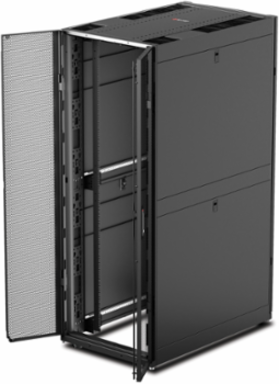

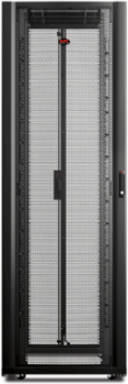

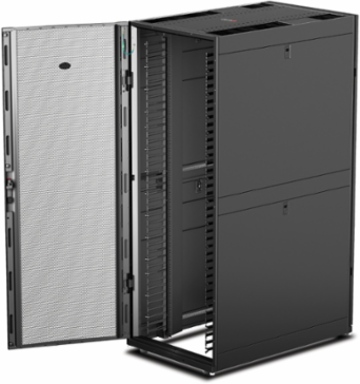

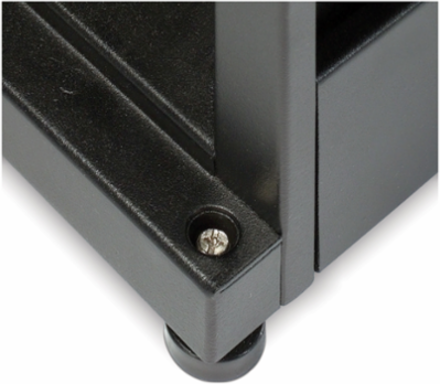

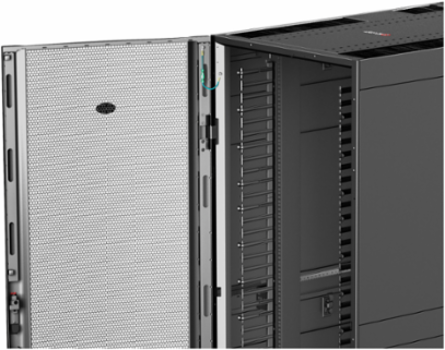

APC AR3347 NetShelter SX Networking Rack Enclosure 48U 29.53 Inch Width 47.24 Inch Depth
- MPN: AR3347
- UPC: 731304284970
- PPN: APC-AR3347
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
APC NetShelter SX Networking Rack Enclosure is industry standard server rack ready for medium to high density environments. Rack design offers 48RU height with 959 mm max equipment mounting depth, 1701 kg (3750 lb) static load, and 1021 kg (2250 kg) dynamic load. Network rack design helps enable faster deployment of network switches and an optimized rack mounting space designed specifically for cable and airflow management of large core networking switches and Storage Area Network (SAN) directors. Deeper rack design provides enough rack mounting space for even the deepest devices and still plenty of room for vertically mounting Rack PDUs and cable management.
Features
- Decrease installation time while supporting the cabling needs of large networking switches.

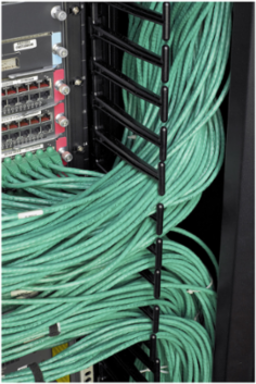

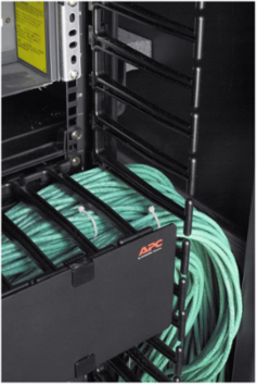

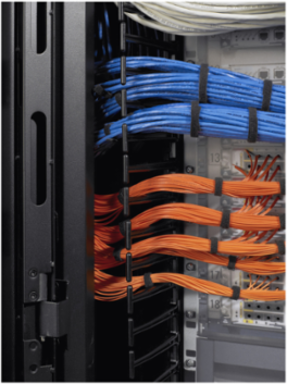

- Smooth plastic fingers provide proper bend radius.

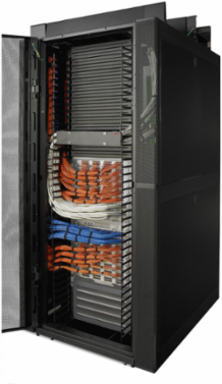

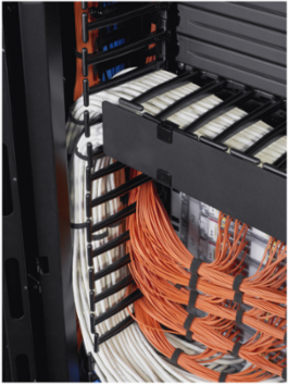

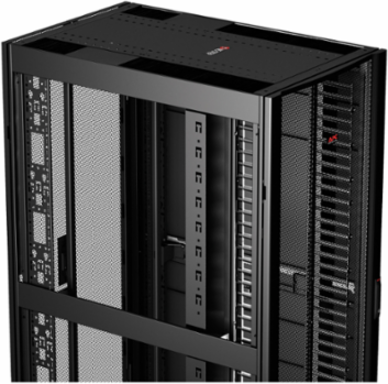

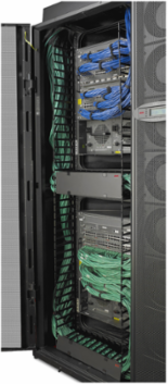

- Maintain and organize large cable bundles for improved efficiency with open vertical mounting rails and large cable openings in roof.

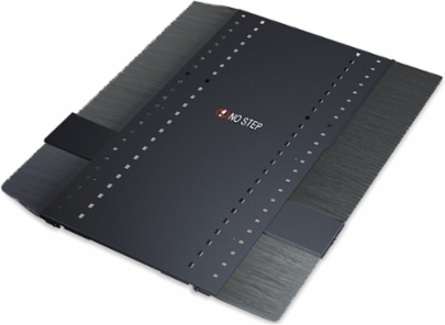

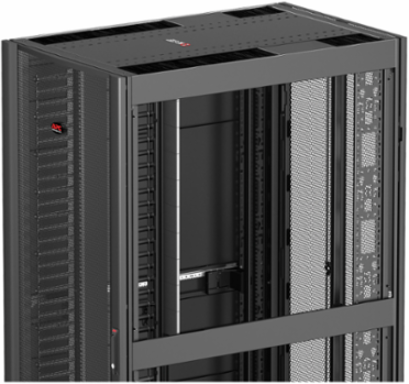

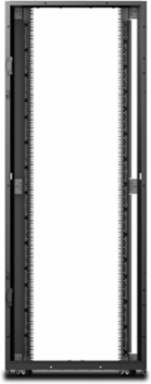

- The vertical mounting rails are opened up for increased cable access and the roof design has large open areas for cable entry/exit from the enclosure.

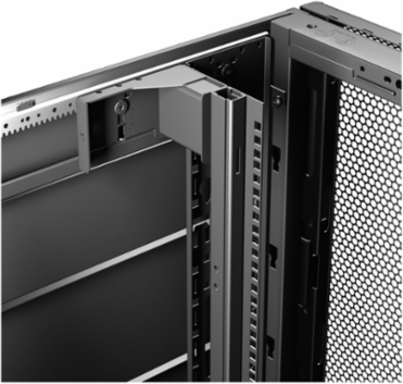

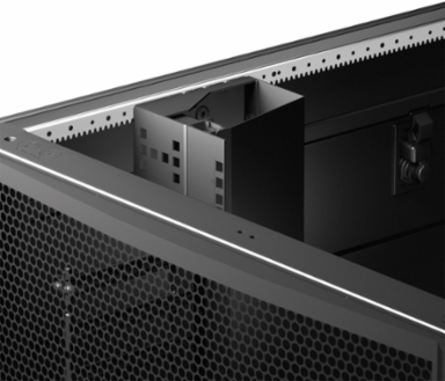

- Airflow management panels, left vertical mounting rail, and side airflow duct kit ensure proper side-to-side airflow to the networking switches from the cold aisle and provide isolation of hot air preventing it from re-entering the cold aisle. Additionally, the front left vertical mounting rail acts as an air block for exhaust air from networking switches.
- Network rack design helps enable faster deployment of network switches
- Optimized rack mounting space designed specifically for large core networking switches
- Height designed to easily fit through standard doorways
- 48U height for maximizing u-space per rack footprint
Documentation & Downloads
Specifications
Additional
| Rack Height | 48U |
|---|---|
| Width | 29.53 in (75 cm) |
| Height | 88.90 in (225.8 cm) |
| Rack Width | 19 in |
| Maximum Mounting Depth | 37.75 in |
| Compliance | TAA, BAA via COTS, UL 2416, UL 60950-1, EIA-310E, RoHS Compliant |
| Reach | Free of Substances of Very High Concern above the threshold |
| Permanent Permissible Load | 2250 lb dynamic, 3750 lb static |
|---|---|
| Depth | 47.24 in (120 cm) |
| Weight | 408.85 lb (185.45 kg) |
| Minimum Mounting Depth | 11.00 in |
| Material | Steel, Plastic (cable management fingers) |
| Country of Origin | Thailand |
