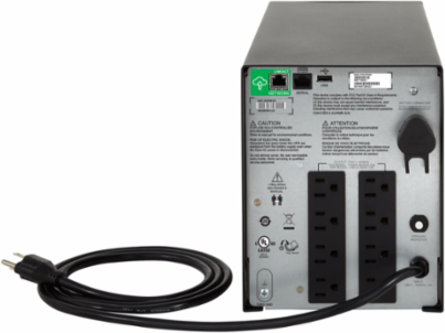

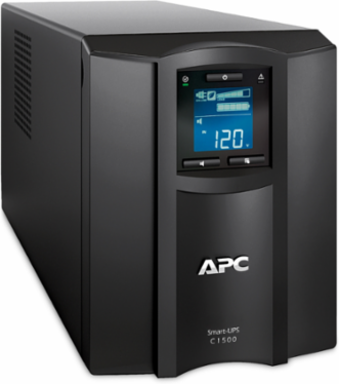

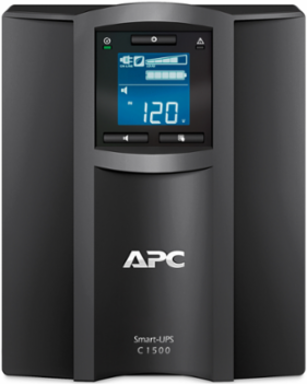

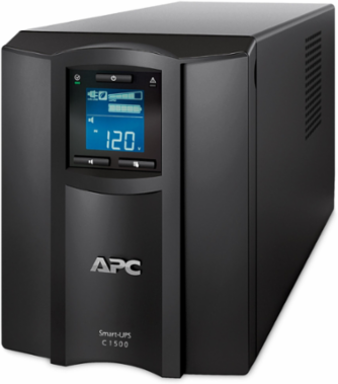

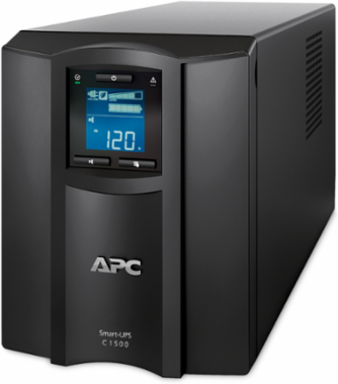

APC SMC1500C Smart-UPS C Line Interactive 1440VA 120V Tower 8 NEMA 5-15R Outlets, AVR
- MPN: SMC1500C
- UPC: 731304322764
- PPN: APC-SMC1500C
CAD
$1083.58
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Smart-UPS C Line Interactive 1440VA 120V Tower 8 NEMA 5-15R Outlets, AVR
Features
- Innovative, easy to use remote monitoring feature that provides automatic notifications, firmware updates, and advanced support services. — Innovative, easy to use remote monitoring feature that provides automatic notifications, firmware updates, and advanced support services.
- Reduces utility costs, generates less heat. — Reduces utility costs, generates less heat.
- Green mode — Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
- Pure sine wave output on battery — Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.
- LCD Status Display — Provides key UPS status at a glance. Multiple status indicators with load and battery bar graphs.
- Cold-start capable — Provides temporary battery power when the utility power is out.
- Temperature-compensated battery charging — Prolongs battery life by regulating the charge voltage according to battery temperature.
Documentation & Downloads
Specifications
Additional
- Capacity
- 1440 VA
- Input Voltage
- 120 V
- Output Outlets
- 8 NEMA 5-15R
- Waveform Type
- Sine wave
- Input Frequency
- 50/60 Hz ± 3 Hz
- Battery Type
- Lead-Acid battery
- Typical Recharge Time
- 3 h
- Surge Energy Rating
- 680 J
- Weight
- 44.31 lb (20.1 kg)
- Replacement Battery
- RBC6
- Color
- Black
- Heat Dissipation
- 225 Btu/h
- Storage Altitude
- 0 to 50,000 ft
- Storage Temperature
- 5 to 113 °F (-15 to 45 °C)
- Storage Relative Humidity
- 0 to 95%
- RoHS Compliance
- Compliant with Exemptions
- California Proposition 65
- Prop 65 Warning: Contains Lead
- Country of Origin
- Vietnam
- Product Orientation
- No preference
Power Rating900 W
Output Voltage120 V
TopologyLine Interactive
Transfer Time6 to 10 ms
Output Frequency50/60 Hz ± 3 Hz
Battery Life3 to 5 years
Battery Charge Power96 W
Cable Length6 ft (1.83 m)
Dimensions (H x W x D)8.62 in x 6.73 in x 17.28 in (219 mm x 171 mm x 439 mm)
Input Connection TypeNEMA 5-15P
Acoustic Level45 dBA
Operating Altitude0 to 10,000 ft
Operating Temperature32 to 104 °F (0 to 40 °C)
Relative Humidity0 to 95%
ApprovalscULus, ENERGY STAR V2.0 (USA)
WEEE ComplianceEU waste disposal compliant
Mercury FreeYes
Warranty2 years repair or replace
Mount PositionFront
