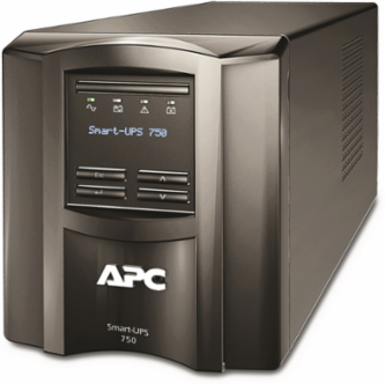

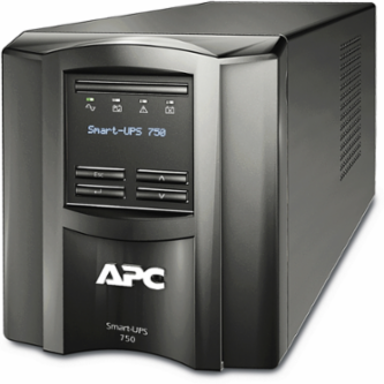

APC SMT750C Smart-UPS Line Interactive 750VA Tower, 120V, 6x NEMA 5-15R Outlets, AVR, LCD
- MPN: SMT750C
- UPC: 731304325451
- PPN: APC-SMT750C
CAD
$826.87
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Smart-UPS Line Interactive 750VA Tower, 120V, 6x NEMA 5-15R Outlets, AVR, LCD
Features
- Innovative, easy to use remote monitoring feature that provides automatic notifications, firmware updates, and advanced support services. — Innovative, easy to use remote monitoring feature that provides automatic notifications, firmware updates, and advanced support services.
- Reduces utility costs, generates less heat. — Reduces utility costs, generates less heat.
- Green mode — Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
- Energy meter — Provides actual kilowatt hours of usage for energy conscious users.
- Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning. — Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning.
- Intuitive LCD interface — Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys.
- Pure sine wave output on battery — Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.
- Cold-start capable — Provides temporary battery power when the utility power is out.
- SmartSlot — Customize UPS capabilities with management cards.
- Temperature-compensated battery charging — Prolongs battery life by regulating the charge voltage according to battery temperature.
Documentation & Downloads
Specifications
Additional
| Output Power Capacity | 750 VA |
|---|---|
| Voltage | 120 V |
| Input Voltage | 120 V |
| Battery Voltage | 24 V |
| Battery Recharge Time | 3 h |
| Battery Charge Power | 49 W |
| Waveform Type | Sine wave |
| Operating Temperature Range | 32 to 104 F (0 to 40 C) |
| Operating Altitude Range | 0 to 10,000 ft |
| Relative Humidity | 0 to 95% |
| Cable Length | 6 ft (1.83 m) |
| Width | 5.43 in (138 mm) |
| Weight | 27.56 lb (12.5 kg) |
| Communication Port | SmartConnect Ethernet port, SmartSlot |
| REACH | Contains Substances of Very High Concern above threshold |
| California Proposition 65 | Prop 65 warning for lead compounds |
| Mercury Free | Yes |
| Output Power | 500 W |
|---|---|
| Number of Outlets | 6 NEMA 5-15R |
| Battery Type | Lead-Acid battery |
| Battery Capacity | 7.0 Ah |
| Battery Life | 3 to 5 years |
| Topology | Line Interactive |
| Surge Energy Rating | 540 J |
| Storage Temperature Range | 5 to 113 F (-15 to 45 C) |
| Storage Altitude Range | 0 to 50,000 ft |
| Storage Relative Humidity | 0 to 95% |
| Height | 6.34 in (161 mm) |
| Depth | 14.53 in (369 mm) |
| Mounting Type | Front |
| RoHS Compliance | Compliant with Exemptions |
| WEEE Compliance | EU waste collection required |
| Approvals | cULus, ENERGY STAR V2.0 (USA) |
| Country of Origin | Vietnam |
