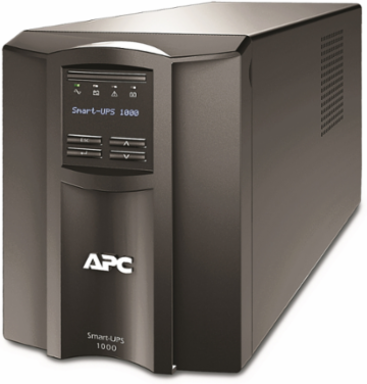

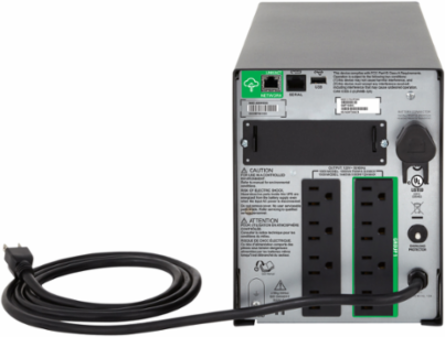

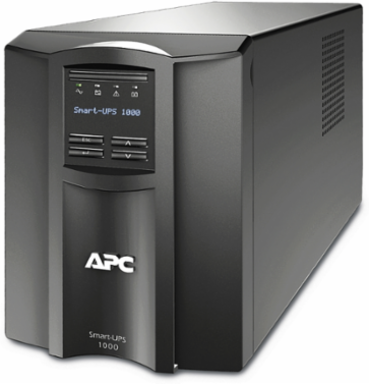

APC SMT1000C Smart-UPS 1000VA Line Interactive 120V Tower, 8x NEMA 5-15R, AVR, 44.31 lb
APC SMT1000C Smart-UPS 1000VA Line Interactive 120V Tower, 8x NEMA 5-15R, AVR, 44.31 lb
- MPN: SMT1000C
- UPC: 731304322771
- PPN: APC-SMT1000C
Spec sheet
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$1159.70/ EA
Description
Smart-UPS 1000VA Line Interactive 120V Tower, 8x NEMA 5-15R, AVR, 44.31 lb
Features
- Innovative, easy to use remote monitoring feature that provides automatic notifications, firmware updates, and advanced support services. — Innovative, easy to use remote monitoring feature that provides automatic notifications, firmware updates, and advanced support services.
- Reduces utility costs, generates less heat. — Reduces utility costs, generates less heat.
- Green mode — Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
- Energy meter — Provides actual kilowatt hours of usage for energy conscious users.
- Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning. — Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning.
- Intuitive LCD interface — Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys.
- Single outlet group that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding. — Single outlet group that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding.
- Pure sine wave output on battery — Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.
- Cold-start capable — Provides temporary battery power when the utility power is out.
- SmartSlot — Customize UPS capabilities with management cards.
- Temperature-compensated battery charging — Prolongs battery life by regulating the charge voltage according to battery temperature.
Specifications
- Capacity
- 1000 VA
- Input Voltage
- 120 V AC 1 phase
- Input Frequency
- 50/60 Hz ±3 Hz auto-sensing
- Output Voltage
- 120 V AC 1 phase
- Output Connection Type
- 8x NEMA 5-15R
- Topology
- Line Interactive
- Battery Type
- Lead-Acid battery
- Surge Energy Rating
- 680 J
- Weight
- 44.31 lb (20.1 kg)
- Mount Position
- front
- Color
- Black
- Storage Temperature Range
- 5-113 °F (-15-45 °C)
- Storage Altitude
- 0-50000 ft
- Noise Level
- 41 dBA
- Certifications
- cULus, ENERGY STAR V2.0 (USA)
- RoHS
- Compliant with Exemptions
- Mercury Free
- Yes
- WEEE
- EU Waste Directive Compliant
- Warranty
- 36 months repair or replace (excluding battery)
- Battery Slots
- 0
- Equipment Protection Policy
- Lifetime : $150000
Power Rating700 W
Input Voltage Range75-154 V adjustable
Input Connection TypeNEMA 5-15P
Output Voltage Range110 V, 125 V
Waveform TypeSine wave
Transfer Time6 ms typical, 10 ms maximum
Typical Recharge Time3 h
Physical Dimensions8.62 in (H) x 6.73 in (W) x 17.28 in (D)
Cable Length6 ft (1.83 m)
Product Orientationno preference
Operating Temperature Range32-104 °F (0-40 °C)
Operating Altitude0-10000 ft
Relative Humidity0-95%
Heat Dissipation175 Btu/h
ComplianceENERGY STAR, EU RoHS Compliant with Exemptions
California Proposition 65Prop 65 Compliant (contains lead)
REACHContains SVHC above threshold
Country of OriginPhilippines
Replacement BatteryRBC6
Run Time ExtendableNo
Interface PortSmartConnect Ethernet port for cloud monitoring
