APC SMT2200J Smart-UPS 2200VA Line Interactive Tower 100V 10 Outlets Sine Wave
- MPN: SMT2200J
- UPC: 731304291756
- PPN: APC-SMT2200J
CAD
$3074.63
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description

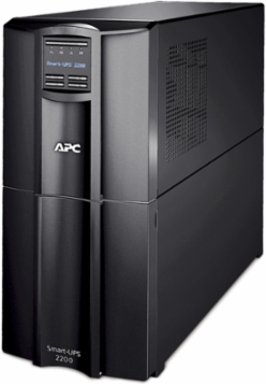

Smart-UPS 2200VA Line Interactive Tower 100V 10 Outlets Sine Wave
Features
- EPO — Attach the device to an Emergency Power Off (EPO) system so that power can be turned off in an emergency situation.
- Pure sinewave battery backup — Prevents interruptions, lost pre-sets, missed DVR recordings, lost multimedia server data and premature projector bulb wear and tear when the power goes out.
- Reduces utility costs, generates less heat. — Reduces utility costs, generates less heat.
- Green mode — Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
- Reduces or eliminates bulky transformers resulting in lighter units for ease of handling. — Reduces or eliminates bulky transformers resulting in lighter units for ease of handling.
- Energy meter — Provides actual kilowatt hours of usage for energy conscious users.
- Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning. — Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning.

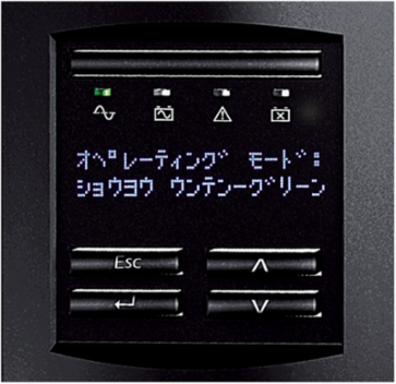

- Intuitive LCD interface — Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys.
- Single outlet group that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding. — Single outlet group that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding.
- Field-replaceable power distribution panel — Ensures compatibility with equipment that has different plug types.
- SmartSlot — Customize UPS capabilities with management cards.
- Temperature-compensated battery charging — Prolongs battery life by regulating the charge voltage according to battery temperature.
Documentation & Downloads
Specifications
Additional
- Capacity
- 2200 VA
- Waveform Type
- Sine wave
- Maximum Input Current
- 24.0 A
- Depth
- 54.4 cm (21.42 in)
- Width
- 19.7 cm (7.76 in)
- Product Orientation
- Tower
- Input Connection Type
- NEMA L5-30P
- Battery Type
- Lead-acid battery
- Approvals
- VCCI class A
Input Voltage100 V
Output Connections10
TopologyLine interactive
Height43.5 cm (17.13 in)
Mount PositionFront
Cord Length1.8 m (6 ft)
Interface PortsRJ-45 Serial, SmartSlot, USB
RoHSCompliant
