APC SMT1500J Smart-UPS Tower 1500VA 100V 8x NEMA 5-15R Sine Wave Output, AVR, LCD
- MPN: SMT1500J
- UPC: 731304290889
- PPN: APC-SMT1500J
CAD
$2022.39
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description

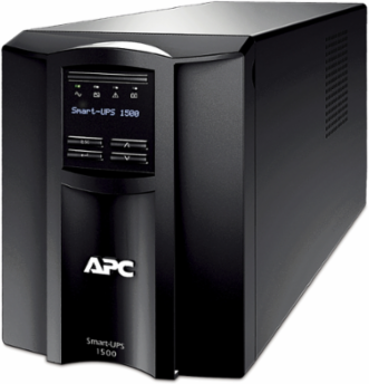

Smart-UPS Tower 1500VA 100V 8x NEMA 5-15R Sine Wave Output, AVR, LCD
Features
- Reduces utility costs, generates less heat. — Reduces utility costs, generates less heat.
- Green mode — Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
- Energy meter — Provides actual kilowatt hours of usage for energy conscious users.
- Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning. — Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning.

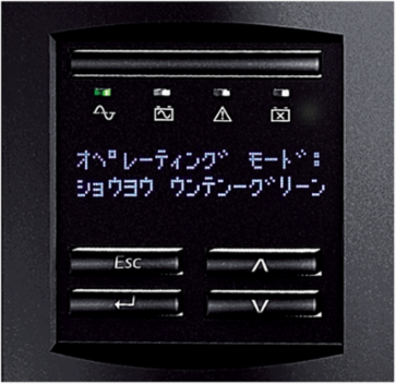

- Intuitive LCD interface — Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys.
- Single outlet group that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding. — Single outlet group that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding.
- Pure sine wave output on battery — Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.
- SmartSlot — Customize UPS capabilities with management cards.
- Temperature-compensated battery charging — Prolongs battery life by regulating the charge voltage according to battery temperature.
Documentation & Downloads
Specifications
Additional
- Capacity
- 1500 VA
- Output Receptacles
- 8 x NEMA 5-15R
- Automatic Voltage Regulation
- Yes
- Maximum Input Current
- 12 A
- Battery Type
- Lead-acid battery
- Interface Ports
- RJ-45 Serial, SmartSlot, USB
- Waveform Type
- Sine wave
- Width
- 6.77 in (17.2 cm)
- Cord Length
- 6 ft (1.8 m)
- Output Connections
- 8
- Color
- Black
- Approvals
- VCCI Class A
Input Voltage100 V
Output WaveformPure Sine Wave
Nominal Output Voltage100 V
Surge Energy Rating459 J
Recharge Time4 hours
Input Connection TypeNEMA 5-15P
Height8.86 in (22.5 cm)
Depth17.28 in (43.9 cm)
Mount PositionFront
TopologyLine interactive
Product OrientationTower
RoHS ComplianceCompliant
