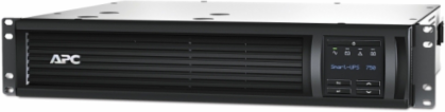

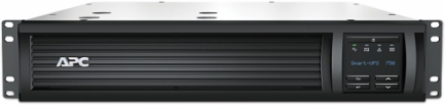

APC SMT750RMI2UNC Smart-UPS 750VA Rackmount 2U 230V, 6 Outlets, Sine Wave, Line Interactive
- MPN: SMT750RMI2UNC
- UPC: 731304327721
- PPN: APC-SMT750RMI2UNC
CAD
$2597.01
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Smart-UPS 750VA Rackmount 2U 230V, 6 Outlets, Sine Wave, Line Interactive
Features
- Cold-start capable — Provides temporary battery power when the utility power is out.
- Energy meter — Provides actual kilowatt hours of usage for energy conscious users.
- Green mode — Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
- High online efficiency — Reduces utility costs, generates less heat.
- Intelligent Card Slot — Customize UPS capabilities with management cards.
- Intuitive LCD interface — Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys.
- Predictive replace battery date — Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning.
- Preinstalled network management card — Provides for remote management and control of the UPS over a network out of the box.
- Single switched outlet group — Single outlet group that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding.
- Temperature-compensated battery charging — Prolongs battery life by regulating the charge voltage according to battery temperature.
Documentation & Downloads
Specifications
Additional
- Output Power Capacity
- 750 VA / 500 W
- Input Voltage
- 230 V
- Surge Energy Rating
- 459 J
- Waveform Type
- Sine wave
- Output Connections
- 6 IEC320 C13
- Width
- 43.2 cm (17 in)
- Rack Height
- 2 U
- Product Orientation
- Rack
- Battery Type
- Maintenance-free sealed lead-acid
- Interface Ports
- RJ-45 10/100 Base-T, RJ-45 Serial, SmartSlot, USB
- Warranty
- 3 years electronics, 2 years battery
Nominal Output Voltage230 V (configurable to 220 or 240 V)
Input Voltage Range150 - 300 V
Input Connection TypeIEC 320 C14
TopologyLine interactive
Height8.9 cm (3.5 in)
Depth40.6 cm (15.98 in)
Mount PositionFront
Net Weight17.27 kg (38 lb)
Typical Recharge Time3 hours
Regulatory ComplianceCE, EAC, RCM, VDE, RoHS Compliant
ColorBlack
