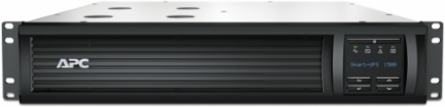

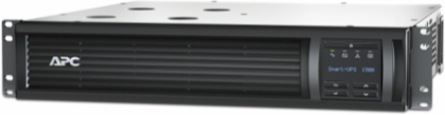

APC SMT1500RMI2U Smart-UPS 1500VA Line Interactive Rackmount 2U 230V with 4x IEC C13 Outlets
- MPN: SMT1500RMI2U
- UPC: 731304284758
- PPN: APC-SMT1500RMI2U
CAD
$2283.58
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Smart-UPS 1500VA Line Interactive Rackmount 2U 230V with 4x IEC C13 Outlets
Features
- Cold-start capable — Provides temporary battery power when the utility power is out.
- Energy meter — Provides actual kilowatt hours of usage for energy conscious users.
- Green mode — Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
- High online efficiency — Reduces utility costs, generates less heat.
- Intelligent Card Slot — Customize UPS capabilities with management cards.
- Intuitive LCD interface — Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys.
- Predictive replace battery date — Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning.
- Pure sine wave output on battery — Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.
- Single switched outlet group — Single outlet group that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding.
- Temperature-compensated battery charging — Prolongs battery life by regulating the charge voltage according to battery temperature.
Documentation & Downloads
Specifications
Additional
- Output Power Capacity
- 1500 VA / 1000 W
- Output Frequency
- 47 - 53 Hz (50 Hz nominal), 57 - 63 Hz (60 Hz nominal)
- Input Voltage Range
- 150 - 300 V (typical 160 - 286 V)
- Input Connection Type
- IEC320 C14
- Surge Energy Rating
- 459 J
- Height
- 8.6 cm (3.39 in)
- Depth
- 45.7 cm (17.99 in)
- Battery Type
- Maintenance-free sealed lead-acid battery with suspended electrolyte; leak proof
- Runtime Estimates at 200 W
- 1 hr 24 min
- Runtime Estimates at 700 W
- 24 min
- Runtime Estimates at Full Load
- 5 min
- Interface Ports
- RJ-45 Serial, USB, SmartSlot
- Emergency Power Off (EPO)
- Optional
- RoHS
- Compliant
- Mount Position
- Front
- Warranty
- 3 years electronics, 2 years battery
Nominal Output Voltage230 V
Waveform TypeSine wave
Input Frequency50/60 Hz ±3 Hz (auto sensing)
TopologyLine interactive
Rack Height2 U
Width43.2 cm (17.01 in)
Net Weight28.64 kg (63 lb)
Replacement BatteryAPCRBC133
Runtime Estimates at 500 W35 min
Runtime Estimates at 1000 W15 min
Output Connections6 IEC320 C13
Control PanelAlpha-numeric LCD display with LED indicators
ApprovalsCE, CSA, EAC, RCM, TÜV, VDE
ColorBlack
Product OrientationRack
