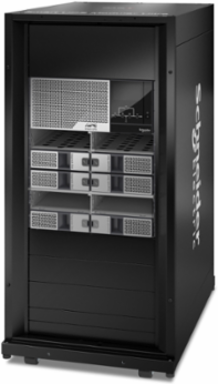

APC SRYLF20T24 Smart-UPS Modular Ultra 20kW, N+1 Redundant, Tower, 24U, 240V AC, 387.57 lb

MPN: SRYLF20T24
UPC: 731304622345
PPN: APC-SRYLF20T24

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Smart-UPS Modular Ultra Tower provides 2.5x more power protection and available U-space in a standalone UPS for a flexible installation to accommodate power needs where necessary. Scale up to 20kW of single-phase power protection with a smaller, lighter and more powerful modular UPS to free up enclosure space for more equipment. Designed for local edge environments, the Smart-UPS Modular Ultra rackmount and tower solutions provide consistent and reliable connectivity at the most critical moments.

Features

24U Tower UPS chassis, scalable to 20kW
125 Amp input Smart-UPS Modular Ultra Tower Frame
Works with genuine APC modules SRYL5KPMT, SRYLBM sold separately
Standard warranty 5 years repair or replace

Documentation & Downloads

Specifications

Additional

Input Voltage	208 V AC
Power	20 kW
Waveform Type	Sine wave
Bypass Type	Built-in Bypass
Width	23.62 in (600 mm)
Weight	387.57 lb (175.8 kg)
Redundancy	N+1
Load Power Factor	0.5 leading to 0.5 lagging
Warranty	60 months (5 years)
Color	black and silver

Output Voltage	240 V AC
Topology	On-Line
Overload Operation	60 seconds @ 125%, 30 seconds @ 150%
Height	47.17 in (1198 mm)
Depth	35.43 in (900 mm)
Battery Type	Li-Ion (Lithium Ion)
Number of Power Modules	2
Input Frequency	40-70 Hz
Compliance	RoHS Compliant with Exemptions
