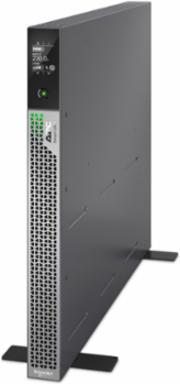

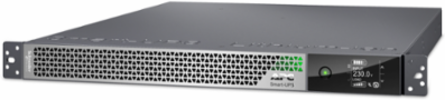

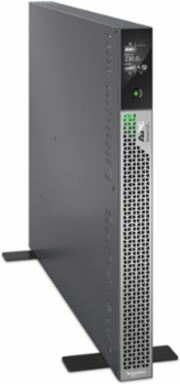

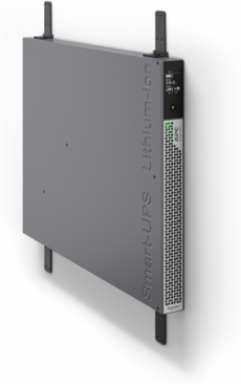

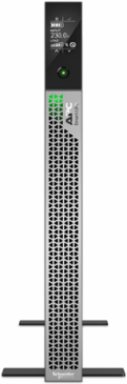

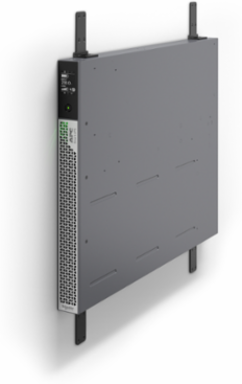

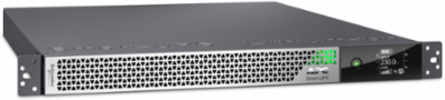

APC SRTL2K2RM1UWNC Smart-UPS Ultra On-Line 2200VA 1U Rack/Tower Li-Ion 208/230V Outputs 3xC13 2xC19
- MPN: SRTL2K2RM1UWNC
- UPC: 731304573593
- PPN: APC-SRTL2K2RM1UWNC
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Smart-UPS Ultra On-Line 2200VA 1U Rack/Tower Li-Ion 208/230V Outputs 3xC13 2xC19
Documentation & Downloads
Specifications
Additional
- Output Power Capacity
- 2200 VA
- Input Voltage
- 208...240 V AC
- Battery Charge Power
- 448 W
- Input Frequency
- 50/60 Hz auto-sensing
- Topology
- On-Line
- Output Voltage THD
- < 2% linear load, < 5% non-linear load
- Efficiency at Full Load
- 97%
- Storage Temperature
- 5-113 °F (-15-45 °C)
- Rack Height
- 1U
- Cord Length
- 8 ft (2.44 m)
- Battery Voltage
- 50 V
- Weight
- 35.05 lb (15.9 kg)
- Acoustic Level
- 55 dB
- RoHS
- Compliant with Exemptions
- Approvals
- CE, EAC, RCM, VDE, UKCA, UK PSTI, EN/IEC 62040-1, FCC CFR 47 part 15 class A, IEC 62040-2, EN/IEC 61000-4-8, EN/IEC 61000-4-6 level 3, EN/IEC 61000-4-5 level 3, EN/IEC 61000-4-4 level 4
- Material Color
- silver grey
- Replacement Battery
- APCRBC173-LI
- Customs Number
- 8504407018
Battery TypeLi-Ion (Lithium Ion)
Output Voltage208...240 V AC
Battery Life8-10 years
Output Frequency50/60 Hz ± 3 Hz
Waveform TypeSine wave
Bypass TypeInternal Bypass (Automatic and Manual)
Operating Temperature32-104 °F (0-40 °C)
Surge Energy Rating1600 J
Output Connections3 IEC 320 C13, 2 IEC 320 C19
Typical Recharge Time1.5 h
Dimensions1.69 in x 17.01 in x 22.05 in (43 mm x 432 mm x 560 mm)
IP Degree of ProtectionIP20
Warranty60 months
Mercury FreeYes
ReachContains Substances of Very High Concern above threshold
Mount Positionhorizontal, vertical
Product Orientationno preference
