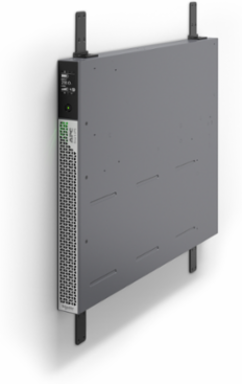

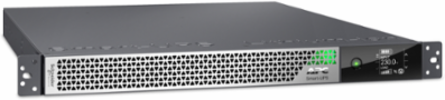

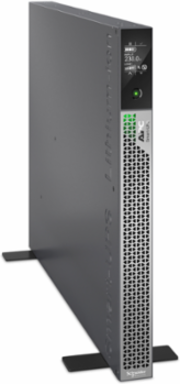

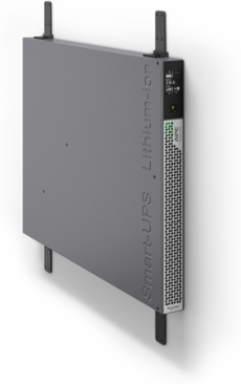

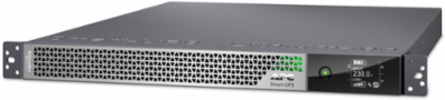

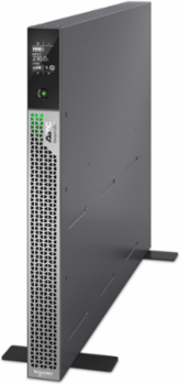

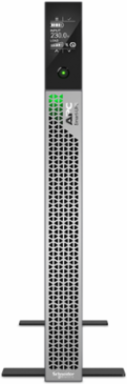

APC SRTL3KRM1UWC Smart-UPS Ultra On-Line 3000VA Lithium-Ion 1U Rack Mount 208/230V 3x C13 2x C19
- MPN: SRTL3KRM1UWC
- UPC: 731304573524
- PPN: APC-SRTL3KRM1UWC
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Smart-UPS Ultra On-Line 3000VA Lithium-Ion 1U Rack Mount 208/230V 3x C13 2x C19
Features
- SmartConnect software for remote power monitoring feature availability varies by terms of use — SmartConnect Ethernet port for cloud monitoring feature availability varies by terms of use
- SmartConnect Ethernet port for cloud monitoring feature availability varies by terms of use — Start-up is fast and efficient, with easy-to-install, plug-in components. Features including low-maintenance joints and integrated couplers reduce the risk of installation error, saving installation and maintenance time and cost.
Documentation & Downloads
Specifications
Additional
- Power Capacity
- 3000 VA, 3000 W
- Output Voltage
- 208...240 V
- Output Connection Type
- 3 IEC 60320 C13, 2 IEC 60320 C19
- Battery Voltage
- 50 V
- Rack Height
- 1U
- Width
- 17.01 in (432 mm)
- Weight
- 35.05 lb (15.9 kg)
- Output Frequency
- 50/60 Hz 0b13 Hz
- Topology
- On-Line
- Bypass Type
- Internal Automatic and Manual
- Ingress Protection
- IP20
- Operating Temperature
- 32 to 104 b0F (0 to 40 b0C)
- Operating Humidity
- 0 to 95% non-condensing
- Operating Altitude
- 0 to 10000 ft
- Mounting Mode
- Rack-mounted with kit
- Customs Number
- 8504407018
Input Voltage208...240 V
Input Connection TypeBS1363A British
Battery TypeLi-Ion (Lithium Ion)
Recharge Time1.5 h
Height1.69 in (43 mm)
Depth22.05 in (560 mm)
Input Frequency50/60 Hz auto-sensing
Crest Factor3:1
Waveform TypeSine wave
Acoustic Level55 dB
ComplianceCE, RoHS Compliant
Storage Temperature5 to 113 b0F (-15 to 45 b0C)
Storage Humidity0 to 95% non-condensing
Storage Altitude0 to 50000 ft
Colorsilver grey
