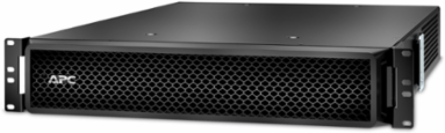

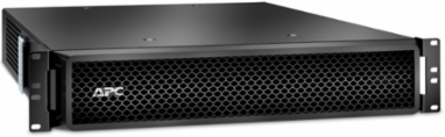

APC SRT5KRMTF Smart-UPS Step-Down Transformer 5kVA, Rackmount 2U, 12x NEMA 5-20R Outlets
- MPN: SRT5KRMTF
- UPC: 731304318866
- PPN: APC-SRT5KRMTF
CAD
$1656.72
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This step-down transformer is part of the Smart-UPS accessories. This is a 5kVA step-down transformer and can be used with 5kVA SRT On-Line rackmount UPS. It can be installed in a 19 inch rack with supplied rail kit. The UPS has an additional SmartSlot for connectivity and PowerChute Network Shutdown support for graceful unattended shutdown. It comes with NEMA L6-30P input and 12x NEMA 5-20R output. The UPS has a 2-year warranty. Its dimensions are 637mm (depth) x 89mm (height) x 432mm (width) and weighs 43.09kg. Ideal for servers, voice/data networks, medical labs, and light industrial applications. It conforms to CSA and UL 1778. Designed for IT professionals or network administrators providing wide input voltage window, tight output voltage regulation, frequency regulation, internal bypass, and input power factor correction.
Features
- Rack — Mountable-Includes horizontal, vertical, and toolless-mount varieties. Puts power where it is needed most - in the racks near the equipment.
- Transformer for Step — down or Step-up or Isolation-Step down transformer placed upstream of the UPS to avoid inrush current and saturation eliminating need to oversize transformer
- 5kVA step-down transformer Smart-UPS accessory
- Features 12 NEMA 5-20R outlets
- Rackmount form factor
- Suitable for high-density power distribution
- Extensive list of compatible products and accessories
Documentation & Downloads
Specifications
Additional
| Transformer Capacity | 5 kVA |
|---|---|
| Output Voltage | 120 V |
| Input Current Limits | 30 A |
| Number of Outlets | 12 |
| Input Connection Type | NEMA L6-30P |
| Size / Width | 17.01 in (432 mm) |
| Weight | 95.00 lb (43.09 kg) |
| Mount Position | front, horizontal |
| Certifications | CSA, UL 1778 |
| WEEE Compliance | EU waste collection required |
| Operating Humidity Range | 0 to 95% non-condensing |
| Storage Temperature Range | 5 to 113 F (-15 to 45 C) |
| Storage Altitude | 0 to 50000 ft |
| Input Voltage | 208 V |
|---|---|
| Max Line Current | 24 A |
| Load Capacity | 5000 VA |
| Outlet Type | NEMA 5-20R |
| Size / Height | 3.50 in (89 mm) |
| Size / Depth | 25.08 in (637 mm) |
| Rack Height | 2U |
| Material / Color | Black |
| Compliance / RoHS | Compliant with Exemptions |
| Operating Temperature Range | 32 to 104 F (0 to 40 C) |
| Operating Altitude | 0 to 10000 ft |
| Storage Humidity Range | 0 to 95% non-condensing |
| Warranty | 24 months |
