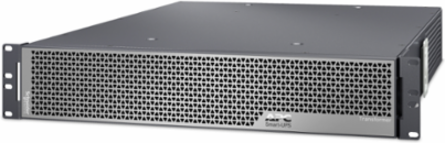

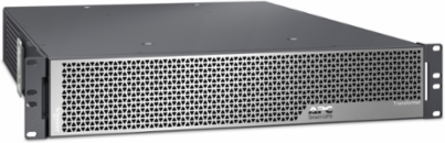

APC SRTL5KRMTF Smart-UPS Ultra Step-Down Transformer 5kVA, Rackmount 2U, 12x NEMA 5-20R Outlets
- MPN: SRTL5KRMTF
- UPC: 731304437055
- PPN: APC-SRTL5KRMTF
CAD
$2067.16
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The Smart-UPS Ultra SRTL 5kW, 2U rack/tower convertible, Step-Down Transformer lets you connect 120V equipment to your existing SRTL5K power protection. Rackmount or tower installation, install the step-down transformer above the compatible STLR 5kW UPS. 120V connections: 2x (4) 5-20R sockets with a 15A thermal circuit breaker + 2x groups (2) numbers of 5-20R sockets with a 15A thermal circuit breaker Standard warranty, 5 years repair or replace.
Features
- 2U height stepdown transformer
- Provides 120V output for 208V UPS
- (4) 5-20R outlets
- Standard warranty 5 years repair or replace
- 1-Year Secure Network Management Card subscription included
Documentation & Downloads
Specifications
Additional
| Power Capacity | 5 kVA |
|---|---|
| Output Voltage | 120 V |
| Max Line Current | 24 A |
| Number of Outlets | 12 NEMA 5-20R |
| Height | 8.35 in (212 mm) |
| Depth | 30.71 in (780 mm) |
| Mounting Position | front, horizontal |
| Approvals | CSA, UL 1778 |
| Storage Temperature Range | 5 113 F (-15 45 C) |
| Storage Altitude | 0 50000 ft (0 15240 m) |
| Product Orientation | No preference |
| Input Voltage | 208 V |
|---|---|
| Input Connection Type | NEMA L6-30P |
| Input Current Limit | 30 A |
| Rack Units | 2U |
| Width | 23.31 in (592 mm) |
| Weight | 101.41 lb (46 kg) |
| Material Compliance | RoHS Compliant, REACH SVHC Free, Mercury Free |
| Operating Temperature Range | 32 104 F (0 40 C) |
| Operating Altitude | 0 10000 ft |
| Color | Black |
