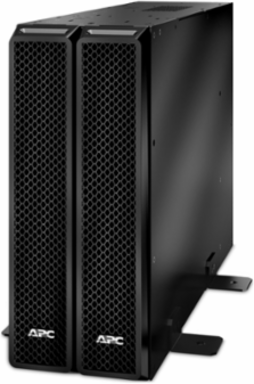

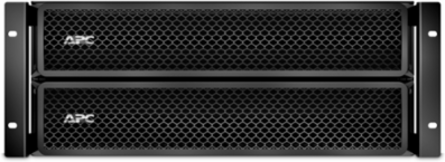

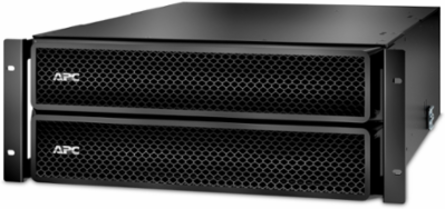

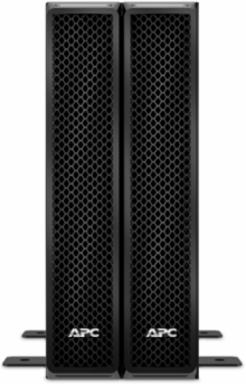

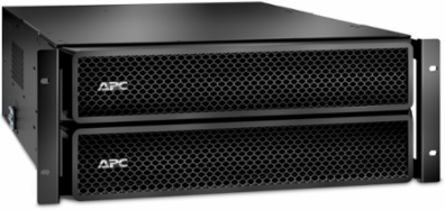

APC SRT10KRMTF Smart-UPS Step-Down Transformer 10kVA Rackmount 4U 220 lb 120/208/240V
- MPN: SRT10KRMTF
- UPC: 731304318859
- PPN: APC-SRT10KRMTF
CAD
$3783.58
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Smart-UPS Step-Down Transformer 10kVA Rackmount 4U 220 lb 120/208/240V
Features
- Rack-Mountable — Includes horizontal, vertical, and toolless-mount varieties. Puts power where it is needed most - in the racks near the equipment.
- Transformer for Step-down or Step-up or Isolation — Step down transformer placed upstream of the UPS to avoid inrush current and saturation eliminating need to oversize transformer
Documentation & Downloads
Specifications
Additional
- Capacity
- 10 kVA
- Output Voltage
- 120 V, 208 V, 240 V
- Input Frequency Range
- 45-65 Hz
- Storage Temperature Range
- 5 °F to 113 °F (-15 °C to 45 °C)
- Storage Altitude
- 0-50,000 ft
- Height
- 6.85 in (174 mm)
- Depth
- 29.49 in (749 mm)
- Mounting Type
- horizontal rack-mounted
- Number of Power Outlets
- 4
- Approvals
- CE, CSA, UL Listed
- REACH
- Contains Substances of Very High Concern
- Customs Number
- 8504320000
- Product Orientation
- lower
Input Voltage208 V
Max Line Current60 A
Operating Temperature Range32 °F to 104 °F (0 °C to 40 °C)
Operating Altitude0-10,000 ft
Relative Humidity0-95% non-condensing
Width17.01 in (432 mm)
Weight220 lb (99.79 kg)

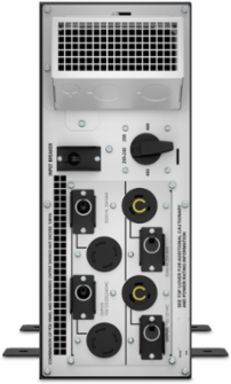

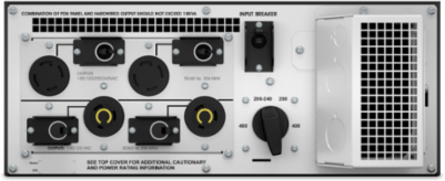

Output ConnectionsHard Wire 3-wire (2PH + G) 2, Hard Wire 4-wire (2PH+N+G) 1
Outlet Types2x NEMA L5-20R, 2x NEMA L14-30R
RoHS ComplianceCompliant with Exemptions
WEEEEU market disposal required
Warranty24 months
