Brady 99455 Arc Flash Labels - Self-Sticking Polyester, 3.5" H x 5" W x 0.006" D, Pack of 5 Labels, Black/Red on White
Brady 99455 Arc Flash Labels - Self-Sticking Polyester, 3.5" H x 5" W x 0.006" D, Pack of 5 Labels, Black/Red on White
- MPN: 99455
- UPC: 754473994556
- PPN: BRD-99455
- UNSPSC: 55122003
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$25.98/ EA
Description
B-302 is an indoor/outdoor high performance pressure sensitive safety sign, and is surface printed polyester with a polyester overlaminate.
Features
- Weathers up to 8 years outdoors, even longer indoors, and withstands wide temperature variations (up to 230°F)
- Flexible material conforms to most surfaces while protected graphics hold up to harsh environments, abrasion, and repeated spills and cleanings
- Permanent, pressure sensitive adhesive forms a long-lasting bond to even the most difficult surfaces and shapes
- Cold temperature adhesive allows the signage to be applied at 0°F (-18°C)
Specifications
Specifications
- Brand Name
- Brady®
- Color
- Black/Red on White
- Enables Industry Compliance
- NEC; NFPA 70E; OSHA 1910.331-335
- Image or Text
- Image & Text
- Mounting Type
- Self-Adhesive
- Primary Noun, Basic Function
- Label
- PSPA Photoluminescence Class
- Not Illuminated
- Shape
- Rectangle
- Write-On
- No
- Adhesive Type
- Permanent Acrylic
- Illumination
- Not Illuminated
- Label Properties
- Permanent Adhesive Labels
- Material
- Polyester with Polyester Overlaminate
- SAP B-Number
- B-302
- Dimensions (Metric)
- 88.9 mm H
- Height (in/ft/yd)
- 3.5 in
- Maximum Service Temperature °C
- 110 °C
- Minimum Application Temperature °C
- -18 °C
- Minimum Service Temperature °C
- -40 °C
- Sign Size
- 3.5 in H x 5 in W
- Thickness (in/ft/yd)
- 0.01 in
- Width (in/ft/yd)
- 5 in
Calculated Sign ShapeHorizontal Rectangle
Compatible Surface TypesCold; High Surface Energy
HeaderDANGER
LanguageEnglish
Number of Printed Sides1
Printer and Label ApplicationsGeneral Identification; Safety
Reflective TypeNon-Reflective

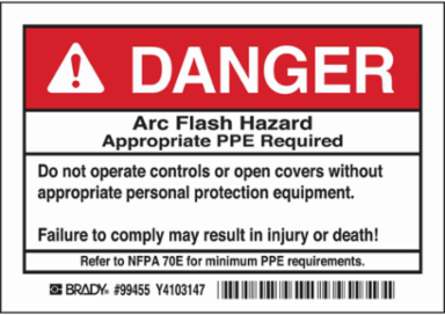

Text LegendArc Flash Hazard Appropriate PPE Required Do not operate controls or open covers without appropriate personal protection equipment. Failure to comply may result in injury or death! Refer to NFPA 70E for minimum PPE requirements.
Write-On AreaNo
Brady Material NumberB-302
Indoor or Outdoor UseOutdoor Use
LaminatedLaminated
Resistance PropertiesAbrasion-Resistant; Chemical-Resistant
Dimensions3.5 in H x 5 in W
Dimensions 23.5 in H x 5 in W
Height (mm/cm/m)88.9 mm
Maximum Service Temperature °F230 °F
Minimum Application Temperature °F0 °F
Minimum Service Temperature °F-40 °F
Sign Size-General3.5 in x 5 in
Thickness (mm/cm/m)0.254 mm
Width (mm/cm/m)127 mm
Regulatory Information
- Contains CA PROP 65 Substance
- No - Does not contain
- DOT Regulated Product
- No = not regulated by DOT
Contains CA PROP 65 SubstanceNo
SDS Safety Data Sheet requiredNo = MSDS/SDS is not required
