Lutron AYFSQ-F-IV-CSA Ariadni 3-Speed Ceiling Fan Control, 120V, Ivory, Gloss Finish
Lutron AYFSQ-F-IV-CSA Ariadni 3-Speed Ceiling Fan Control, 120V, Ivory, Gloss Finish
- MPN: AYFSQ-F-IV-CSA
- UPC: 027557595827
- PPN: LUT-AYFSQ-F-IV-CSA
- UNSPSC: 39122240
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$34.61/ EA
Description
Lutron Ariadni fan controls are designed to replace or match your traditional toggle style switches. This control can be used to operate a single 3-speed ceiling fan. This fan control features a smooth, linear slider to adjust the fan’s speed and a toggle switch that turns the fan ON/OFF. Use the slider to select between 3-speeds (Low/Med/High) for a favorite preset level. The Ariadni fan control fits into a traditional wall plate opening and can also work with your existing multi-gang wall plates. Available in 6 gloss colors. Pairs perfectly with Lutron Fassada wall plates for consistent color matching (sold separately).
Features
- Includes (1) Lutron Ariadni 3-Speed Fan Control; Gloss Finish
- Rated for 1.5A 3-speed Ceiling Paddle Fans
- For use with (1) ceiling paddle fan per control; not compatible with fans with proprietary remotes
- No Neutral Required; 120V
- Single Pole or 3-Way compatible
- Wire lead installation

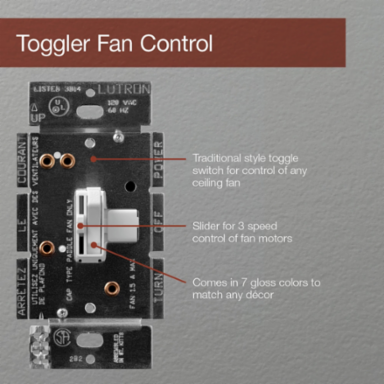

- Toggle turns fan ON/OFF
- Slider adjusts preset fan speeds; Low, Medium, High
- Available in 6 gloss colors
- Pairs perfectly with Lutron Fassada wall plates for consistent color matching (wall plates are sold separately)
- Controls 1.5 A fan
- Toggle turns fan on/off
- Slide up to increase speed, down to decrease
- 3 quiet fan speeds designed to prevent motor hum (for use with one ceiling paddle fan).
Specifications
Specifications
- Connection
- Wire leads
- Amperage Rating
- 1.5 A
- Mounting
- Wallbox
- Application
- Fan Control
- Voltage Rating
- 120 V
- Enclosure
- Plastic

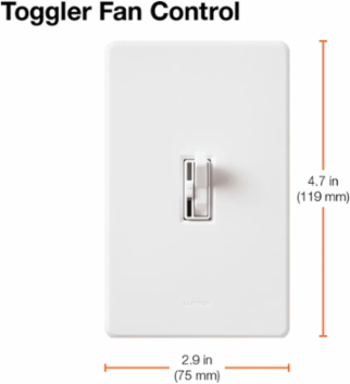

- Size
- 4.60 x 2.86 in
- Finish
- Gloss
- Aesthetic Finish
- Glossy
ActuatorToggle switch
Contact ConfigurationN-O
TypeFan Control, 3-way/single-pole
Contact Rating1.5 A
Wattage180 W
Number Of Poles1
ColorIvory
Decorative ColorIvory
Family ColorBeige
