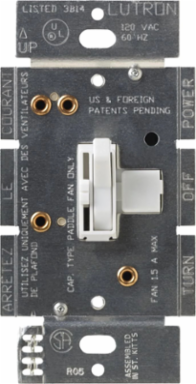

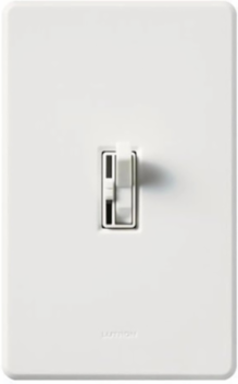

Lutron AYFSQ-F-WH-CSA Ariadni Fan Control, 120V/1.5A, 3-Speed, Gloss White, Toggle Switch
- MPN: AYFSQ-F-WH-CSA
- UPC: 027557595841
- PPN: LUT-AYFSQ-F-WH-CSA
- UNSPSC: 39122240
CAD
$34.61
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Lutron Ariadni fan controls are designed to replace or match your traditional toggle style switches. This control can be used to operate a single 3-speed ceiling fan. This fan control features a smooth, linear slider to adjust the fan’s speed and a toggle switch that turns the fan ON/OFF. Use the slider to select between 3-speeds (Low/Med/High) for a favorite preset level. The Ariadni fan control fits into a traditional wall plate opening and can also work with your existing multi-gang wall plates. Available in 6 gloss colors. Pairs perfectly with Lutron Fassada wall plates for consistent color matching (sold separately).

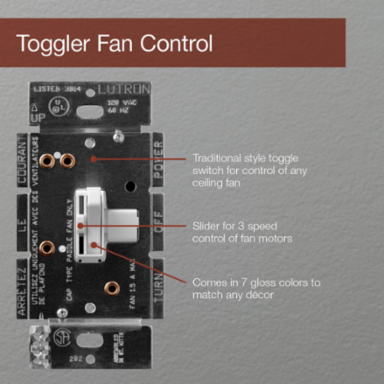

Features
- Controls 1.5 A fan. Toggle turns fan on/off. Slide up to increase speed, down to decrease. 3 quiet fan speeds designed to prevent motor hum (for use with one ceiling paddle fan).
- Includes (1) Lutron Ariadni 3-Speed Fan Control; Gloss Finish
- Rated for 1.5A 3-speed Ceiling Paddle Fans
- For use with (1) ceiling paddle fan per control; not compatible with fans with proprietary remotes
- No Neutral Required; 120V
- Single Pole or 3-Way compatible
- Wire lead installation
- Toggle turns fan ON/OFF
- Slider adjusts preset fan speeds; Low, Medium, High
- Available in 6 gloss colors
- Pairs perfectly with Lutron Fassada wall plates for consistent color matching (wall plates are sold separately)
- Controls 1.5 A fan
- Toggle turns fan on/off
- Slide up to increase speed, down to decrease. 3 quiet fan speeds designed to prevent motor hum (for use with one ceiling paddle fan)
Documentation & Downloads
Specifications
Key Specifications
| Number Of Poles | 1 |
|---|---|
| Amperage Rating | 1.5 A |
| Color | White |
| Contact Configuration | N-O |
| Enclosure | Plastic |

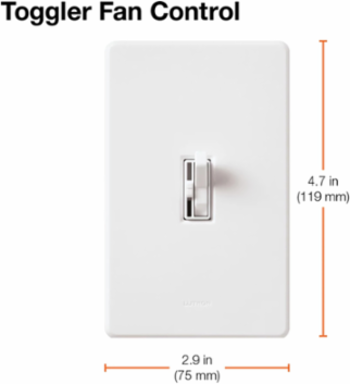

| Size | 4.60 x 2.86 in |
| Voltage Rating | 120 V |
| Aesthetic Finish | Glossy |
| Family Color | White |
| Actuator | Toggle switch |
|---|---|
| Application | Fan Control |
| Connection | Wire leads |
| Contact Rating | 1.5 A |
| Mounting | Wallbox |
| Type | Fan Control, 3-way/single-pole |
| Wattage | 180 W |
| Decorative Color | White |
| Finish | Gloss |
