Lutron AYFSQ-F-LA-CSA Ariadni 3-Speed Fan Control, Light Almond, 1.5A, 120V
- MPN: AYFSQ-F-LA-CSA
- UPC: 027557595834
- PPN: LUT-AYFSQ-F-LA-CSA
- UNSPSC: 39122240
CAD
$34.61
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description

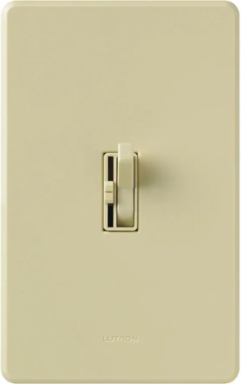

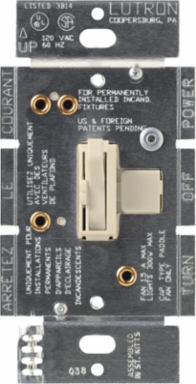

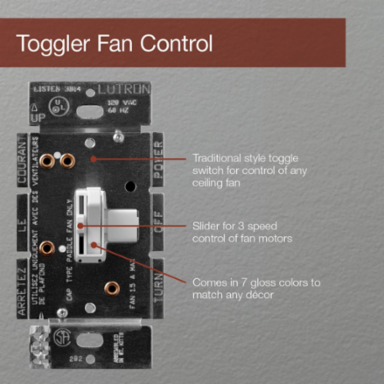

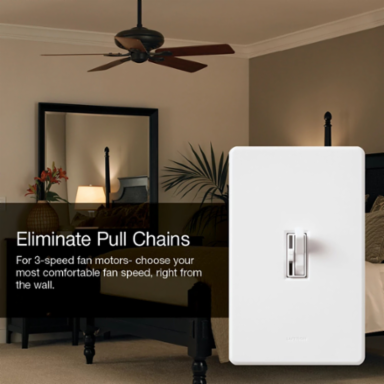

Lutron Ariadni fan controls are designed to replace or match your traditional toggle style switches. This control can be used to operate a single 3-speed ceiling fan. This fan control features a smooth, linear slider to adjust the fan’s speed and a toggle switch that turns the fan ON/OFF. Use the slider to select between 3-speeds (Low/Med/High) for a favorite preset level. The Ariadni fan control fits into a traditional wall plate opening and can also work with your existing multi-gang wall plates. Available in 6 gloss colors. Pairs perfectly with Lutron Fassada wall plates for consistent color matching (sold separately).
Features
- Includes (1) Lutron Ariadni 3-Speed Fan Control; Gloss Finish
- Rated for 1.5A 3-speed Ceiling Paddle Fans
- For use with (1) ceiling paddle fan per control; not compatible with fans with proprietary remotes
- No Neutral Required; 120V
- Single Pole or 3-Way compatible
- Wire lead installation
- Toggle turns fan ON/OFF
- Slider adjusts preset fan speeds; Low, Medium, High
- Available in 6 gloss colors
- Pairs perfectly with Lutron Fassada wall plates for consistent color matching (wall plates are sold separately)
- Controls 1.5 A fan
- Toggle turns fan on/off
- Slide up to increase speed, down to decrease
- 3 quiet fan speeds designed to prevent motor hum (for use with one ceiling paddle fan).
Documentation & Downloads
Specifications
Key Specifications
- Actuator
- Toggle switch
- Application
- Fan Control
- Connection
- Wire leads
- Contact Rating
- 1.5 A
- Mounting
- Wallbox
- Type
- Fan Control, 3-way/single-pole
- Wattage
- 180 W
- Decorative Color
- Light Almond
- Finish
- Gloss
Amperage Rating1.5 A
ColorLight Almond
Contact ConfigurationN-O
EnclosurePlastic

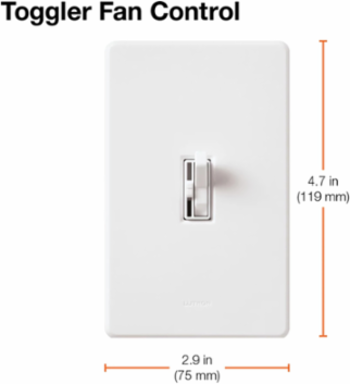

Size4.60 x 2.86 in
Voltage Rating120 V
Aesthetic FinishGlossy
Family ColorBeige
