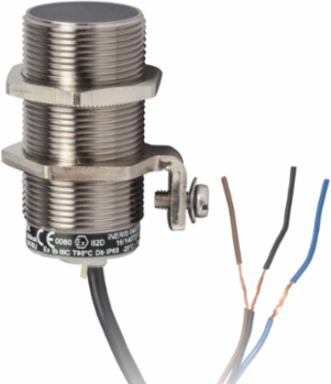

Telemecanique Sensors XSAV11373EX Rotation monitoring for hazardous area dust, M30, Sn10mm, 6...150c/mn, NC, cable 2 m
- MPN: XSAV11373EX
- PPN: TES-XSAV11373EX
- UNSPSC: 39122230
CAD
$608.38
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
This sensor is dedicated to rotation monitoring in hazardous areas. It complies with the 2014/34/EU - ATEX directive. It provides an economical solution for detecting slip, belt breakage, drive shaft shear and overloading. Dedicated to rotation monitoring, it is suitable for conveyor belts, bucket elevators and Archemedian screws. And also for grinders, crushers, pumps, centrifugal driers, mixers, etc. This product is a cylindrical sensor, flush mountable in metal, diameter 30mm, threaded M30 x 1.5. It features a cylindrical metal case and a 2m long cable. It has a sensing distance of 10mm. Its adjustable frequency range is 6 impluses/min to 150 impluses/min. Three-wire, DC supply, 12V to 48V, NC function, PNP solid-state output.
Documentation & Downloads
Specifications
Key Specifications
| Electrical Connection | cable |
|---|---|
| Discrete Output Function | 1 NC |
| Range Of Product | Telemecanique Inductive proximity sensors XS |
| Sensor Name | XSA |
| Size | 30 mm |
| Ip Degree Of Protection | IP67 IEC 60529 |
| Body Type | fixed |
| Sensor Type | inductive proximity sensor |
| Switching Capacity In Ma | <= 200 mA overload and short-circuit protection |
| Enclosure Material | nickel plated brass |
| Device Application | rotation monitoring ATEX dust |
| Discrete Output Type | PNP |
|---|---|
| Type Of Output Signal | discrete |
| Cable Length | 2 m |
| Material | metal |
| Wiring Technique | 3-wire |
| Series Name | Application |
| [Sn] Nominal Sensing Distance | 10 mm |
| Detector Flush Mounting Acceptance | flush mountable |
| Sensor Design | cylindrical M30 |
| Output Circuit Type | DC |
| [Us] Rated Supply Voltage | 12...48 V DC reverse polarity protection |
Complementary
| Current Consumption | 0...15 mA no-load |
|---|---|
| Repeat Accuracy | 3% of Sr |
| Maximum Voltage Drop | <1.8 V closed state) |
| Marking | II2 D-Ex tb IIIC T90°C Db IP67 |
| Switching Frequency | <= 100 Hz |
| Sensing Range | > 8...15 mm |
| Differential Travel | 3...15% of Fr |
| Supply Voltage Limits | 10-58 V DC |
| Detection Face | frontal |
| Front Material | PPS |
| Status Led | output state 1 LED red) |
|---|---|
| Operating Zone | 0-8 mm |
| Threaded Length | 57 mm |
| Length | 81 mm |
| Thread Type | M30 x 1.5 |
| Adjustable Frequency Range | 6-150 cyc/mn |
| Run-Up Delay At Power-Up | 9 s standard |
| Wire Insulation Material | PVC |
| Cable Composition | 3 x 0.34 mm² |
Environment
| Product Certifications | INERIS 04ATEX0022 || IEC-Ex INE 17.0006 |
|---|---|
| Standards | EN/IEC 60079-31 || EN/IEC 60079-0 |
| Directives | 2014/34/EU - ATEX directive |
| Ambient Air Temperature For Operation | -20-60 °C |
|---|---|
| Dust Zone | zone 21 - 22 |
| Environmental Characteristic | hazardous location |
Contractual warranty
| Warranty | 18 months |
|---|
Offer Sustainability
| Rohs Exemption Information | Yes |
|---|---|
| Environmental Disclosure | ENVPEP111006EN |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Mercury Free | Yes |
|---|---|
| Sustainable Offer Status | Green Premium product |
| Circularity Profile | ENVEOLI1110045 |
