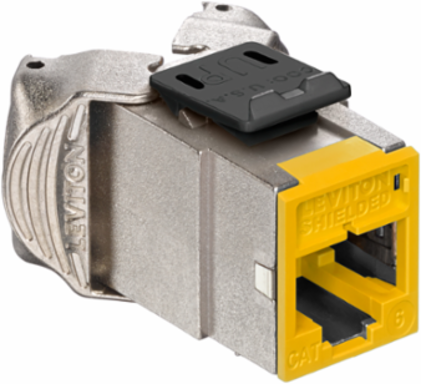

Leviton 61SJK-RY6 ATLAS-X1 Cat 6 Shielded QUICKPORT Jack, Yellow, Tool-Free Termination
Leviton 61SJK-RY6 ATLAS-X1 Cat 6 Shielded QUICKPORT Jack, Yellow, Tool-Free Termination
- MPN: 61SJK-RY6
- UPC: 078477696002
- PPN: LEV-61SJK-RY6
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$28.80/ EA
Description
The ATLAS-X1 Category 6 Component-Rated Shielded QUICKPORT Jack supports 1000BASE-T networks. The shielded jack provides superior alien crosstalk (AXT) suppression and protects critical data from potential EMI/RFI (electromagnetic interference/radio frequency interference). The jack is part of a complete ATLAS-X1 Cat 6 shielded system ideal for government, healthcare, manufacturing, transportation, gaming, and other environments where EMI/RFI and/or security may be a concern
Features
- Independently tested and guaranteed to exceed all component, permanent link, and channel margins
- Patented Retention Force Technology ™ (RFT) protects against tine damage and increases system longevity
- For Power over Ethernet, RFT maintains contact force between plug and jack, preventing arcing from intermittent disconnects
- Shielding provides EMI/RFI protection, signal isolation, and excellent alien crosstalk (AXT) suppression
- Unique design supports tool-free termination/re-termination and requires no specialized termination tool
- Short jack design supports a wider range of applications (e.g. shallow boxes, enclosures, bend radius, etc.)
- Terminates from 26 to 22-gauge solid or stranded conductors for use on various cable types
- Robust IDCs can withstand 20 re-termination cycles and jack contacts are tested for 750 plug-mating cycles to ensure system longevity
- Available in 13 ANSI/TIA-606-C compatible colors
- Select jacks available with interchangeable icons (voice, data, A/V, and blank, color coded to match the jack face) for easy identification and tracking of data, voice, or other functions
- Jack with internal shutter protects against dust and debris
- Solid metal body dissipates 53% more heat than traditional plastic, minimizing damage from excess heat in PoE applications
- Tine geometry prevents arcing damage where plug and jack make contact
- Will exceed IEEE 802.3bt standard up to 0.5 amps per conductor (100 watts) continuously
- ETL verified to meet the IEC 60512-99-002 standard for support of IEEE 802.3bt Type 4 PoE (90-watt) applications
Specifications
Product Features
- Brand
- ATLAS-X1
- Color
- Yellow
- Product Family
- Jacks
- Termination Type
- Tool-Free
Category RatingCat 6
PackagingSingle
ShieldingShielded
Specifications
- Country of Origin
- Please Contact Customer Service
RoHS CompliantFalse
