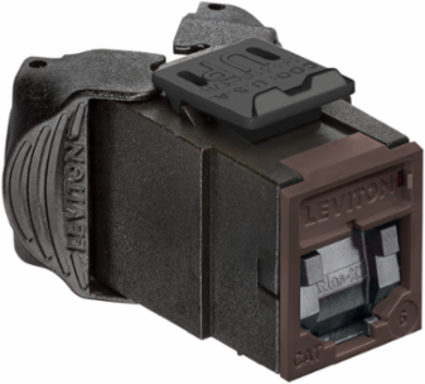

Leviton 61UJK-SB6 ATLAS-X1 Cat 6 UTP QUICKPORT Jack, Tool-Free Termination, Brown
Leviton 61UJK-SB6 ATLAS-X1 Cat 6 UTP QUICKPORT Jack, Tool-Free Termination, Brown
- MPN: 61UJK-SB6
- UPC: 078477699782
- PPN: LEV-61UJK-SB6
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$30.86/ EA
Description
ATLAS-X1 Cat 6 Component-Rated UTP QUICKPORT Jacks support 1000BASE-T networks. The jack is part of a complete ATLAS-X1 Cat 6 UTP system, ideal for the most demanding mission-critical network applications. The jack supports emerging technologies and will easily adapt to network trends
Features
- Independently tested and guaranteed to exceed all component, permanent link, and channel margins
- Patented Retention Force Technology ™ (RFT) protects against tine damage and increases system longevity
- For Power over Ethernet, RFT maintains contact force between plug and jack, preventing arcing from intermittent disconnects
- Unique design supports tool-free termination/re-termination and requires no specialized termination tool
- Short jack design supports a wider range of applications (e.g. shallow boxes, enclosures, bend radius, etc.)
- Terminates from 26 to 22-gauge solid or stranded conductors for use on various cable types
- Robust IDCs can withstand 20 re-termination cycles and jack contacts are tested for 750 plug-mating cycles to ensure system longevity
- Available in 14 ANSI/TIA-606-C compatible colors
- Select jacks available with interchangeable icons (voice, data, A/V, and blank, color coded to match the jack face), for easy identification and tracking of data, voice, or other functions
- Jack with internal shutter protects against dust and debris
- Solid metal body dissipates 53% more heat than traditional plastic, minimizing damage from excess heat in PoE applications
- Tine geometry prevents arcing damage where plug and jack make contact
- Will exceed IEEE 802.3bt standard up to 0.5 amps per conductor (100 watts) continuously
- ETL verified to meet the IEC 60512-99-002 standard for support of IEEE 802.3bt Type 4 PoE (90-watt) applications
Specifications
Specifications
- Country of Origin
- United States
RoHS CompliantFalse
Product Features
- Brand
- ATLAS-X1
- Color
- Brown
- Product Family
- Jacks
- Shutter Mechanism
- Shuttered
Category RatingCat 6
PackagingSingle
ShieldingUnshielded
Termination TypeTool-Free
