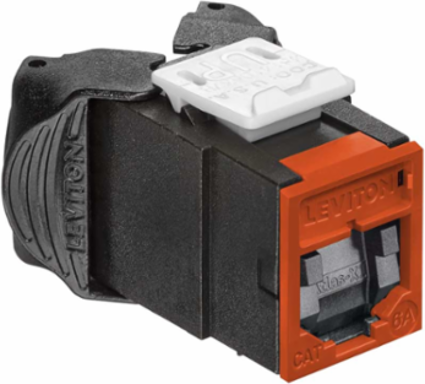

Leviton 6AUJK-SO6 ATLAS-X1™ Cat 6A UTP QUICKPORT™ Jack with Shutters, Orange
Leviton 6AUJK-SO6 ATLAS-X1™ Cat 6A UTP QUICKPORT™ Jack with Shutters, Orange
- MPN: 6AUJK-SO6
- UPC: 078477700112
- PPN: LEV-6AUJK-SO6
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$45.63/ EA
Description
The ATLAS-X1 Cat 6A Component-Rated UTP QUICKPORT Copper Jack supports 10GBASE-T networks. The jack is part of a complete ATLAS-X1 Cat 6A UTP system, ideal for the most demanding mission-critical network applications. The jack supports emerging technologies and will easily adapt to network trends
Features
- Independently tested and guaranteed to exceed all component, permanent link, and channel margins
- Patented Retention Force Technology ™ (RFT) protects against tine damage and increases system longevity
- For Power over Ethernet (PoE), RFT maintains contact force between plug and jack, preventing arcing from intermittent disconnects
- Unique design supports tool-free termination and re-termination and requires no specialized termination tool
- Short jack design supports a wider range of applications (e.g. shallow boxes, enclosures, bend radius, etc.)
- Terminates from 26 to 22 AWG solid or stranded conductors for use on various cable types
- Robust IDCs can withstand 20 re-termination cycles and jack contacts are tested for 3,000 plug-mating cycles to ensure system longevity
- Available in 14 ANSI/TIA-606-C compatible colors
- Tested and approved for use in air-handling spaces (plenum rating) in accordance with UL Standard 2043
- Select jacks available with interchangeable icons (voice, data, A/V, blank) for easy ID
- Select colors available in 12-Pack GREENPACK™ packaging that is fully recyclable
- Jack with internal shutter protects against dust and debris
- Solid metal body dissipates 53% more heat than plastic, minimizing damage from excess heat in PoE applications
- Tine geometry prevents arcing damage where plug and jack make contact
Specifications
Product Features
- Brand
- ATLAS-X1
- Color
- Orange
- Product Family
- Jacks
- Shutter Mechanism
- Shuttered
Category RatingCat 6A
PackagingSingle
ShieldingUnshielded
Termination TypeTool-Free
Specifications
- Country of Origin
- United States
RoHS CompliantFalse
