Federal Signal

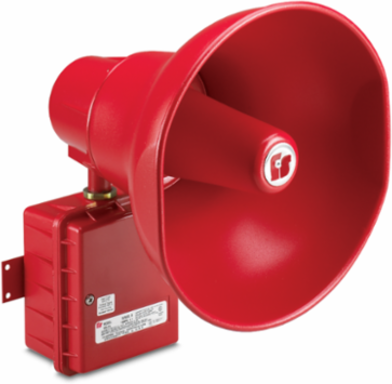

Federal Signal AM302GCX-R AudioMaster Public Address Speaker, 30W, Hazardous Location, UL and cUL CID2, UL Fire, Red

AudioMaster Public Address Speaker, 30W, Hazardous Location, UL and cUL CID2, UL Fire, Red
  • MPN: AM302GCX-R
  • UPC: 782979221258
  • PPN: FDS-AM302GCX-R
  • UNSPSC: 46171602

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$1159.74/ EA

Description

Federal Signal Models AM300GCX and AM302GCX are rugged, transformer coupled, re-entrant speakers for use in public address or paging applications. These speakers feature rugged cones and projectors constructed of spun aluminum. The wiring connections are enclosed in a dust- and moisture-proof, die-cast aluminum compartment. All external surfaces are finished with a red or gray powder coat paint.The unique shape of the speaker projectors provides an impressive 60° sound dispersion pattern. The projectors are held in position with a Teflon coated lock ring that can be rotated 180° in order to obtain the desired sound distribution.Models AM300GCX and the AM302GCX can be used in supervised alarm notification systems or CTS series amplifiers with the AudioRouter™ to complete an industrial-grade public address system.

Features

  • 15 watt (AM300GCX) or 30 watt (AM302GCX)
  • 25 or 70 Vrms
  • Transformer coupled
  • Re-entrant horn design
  • Wall mount
  • 1/2-inch conduit openings
  • Type 4X, IP66 enclosure
  • IP69K complaint
  • CSFM Approved (Model AM300GCX only)
  • UL and cUL for Class I, Division 2, Groups A, B, C, and D; Class II, Division 2, Groups F and G; Class III
  • UL Fire Listed

Specifications

Specifications

Country of Origin
United States
Audio Input
25/70
Certification Listing
CSFM, UL Fire
dBa 10 Ft
114
Mount Type
Wall
Watts
30
Public Address Wattage
30
Height
13.9 in, 35.306 cm
Weight7.2 lbs
Body ColorRed
dBa 1 Meter124
AvailabilityAvailable in 4-6 weeks
Operating Temp.-67˚ to +150˚F (-55˚ to +66˚C)
Public Address Body ColorRed
Depth13.9 in, 35.306 cm
Width10.2 in, 25.908 cm
